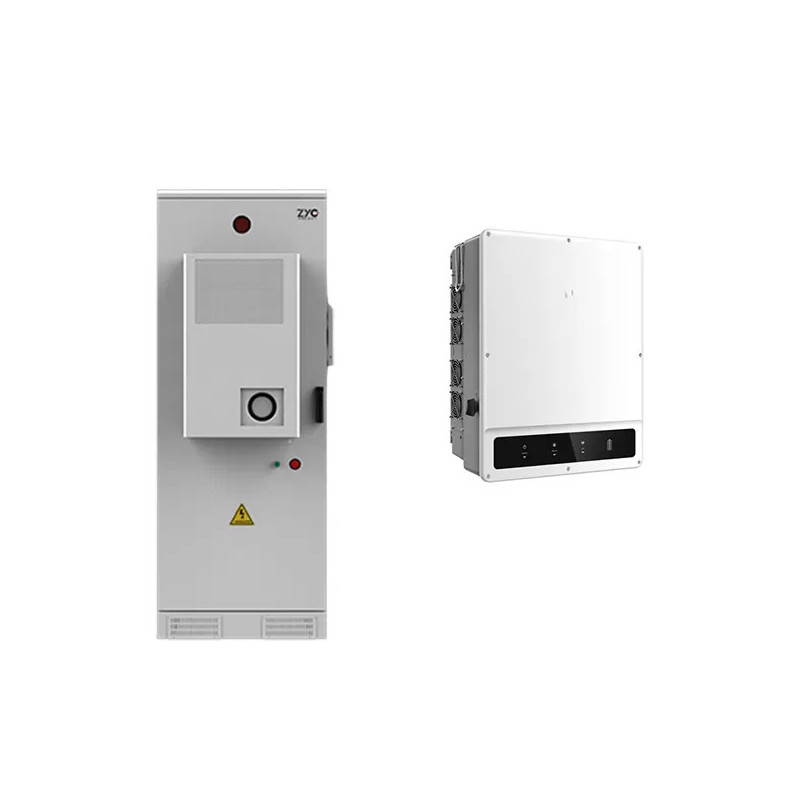

SIMPO HV PRO72-9 + GW40K-ET-10

This XL storage package from Goodwe and ZYC is the ideal system module for small commercial applications. Both the system and the storage unit can be switched as required in cascade. The inverter equipment offers the necessary flexibility with a maximum of 4 MPP trackers, high input flows, surge protection and AFCI. Various scenarios such as own consumption, peak load reduction, time-dependent rates and grid support can be realized with the system. In combination with the STS-Box (Static Transfer Switch), the usual reliable switch to UPS level is also guaranteed in backup mode. Thanks to modular storage racks, each with a useful capacity of 8.0 kWh, the Simpo HV Pro of ZYC can be equipped as needs. This means that 48.4 to 72.6 kWh per rack is possible.

Product advantages:

• Up to 42 a input current per mppt

• Integrated DC Type 1 + 2 / AC Type 2 Surge protection

• The inverter can be mounted directly on the side of the cabinet.

• Installation outdoors possible

• A maximum of 16 cupboards can be connected in cascade.

Product features System:

• AC power: 40 kW

• Retain voltage: 400V

• Connection phases: 3-phase

• Number of MPPT points: 3

• DC input current per MPPT: 42 + 32 + 42 A

• Storage connections: 1

• Communication: WiFi, Ethernet, 4G, RS485

• Protection class: IP66

• Cooling: Active

• Dimensions: 660 x 520 x 260 mm (L x W x h)

• Weight: 62.0 kg

• WiFi-Lan-Dongle + Smart Meter GM330 included in the delivery

Product features Storage:

• Battery capacity (usable): 72.58 kWh

• Extension period: unlimited

• Celochemie: LFP

• Interfaces: Can, RS485, Modbus TCI / IP

• System structure: 6 - 9 Storage modules

• Cascadable: up to 16 cupboards together

• Nominal voltage: 691.2 V

• Protection class: IP55

• Cabinet dimensions: 2000 x 750 x 1300 mm (H x W x D)

• Weight: 945.0 kg

• Warranty: 10 years

Conclusion:

A top combination for small commercial systems. Reliable and powerful.

Delivery:

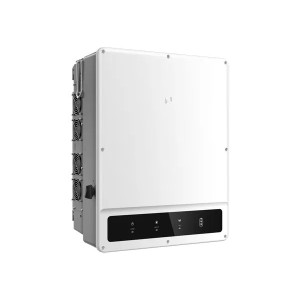

• 1 x Goodwe GW40 ET-10 (Article number 0159103)

• 1 x ZYC SIMPO HV PRO BMS, Battery management system (part number 0159958)

• 1 x ZYC SIMPO HV Pro Cupboard Outdoor 9 (Art. 0159959)

• 9 x ZYC SIMPO HV Pro Storage module (part number 0159957)
