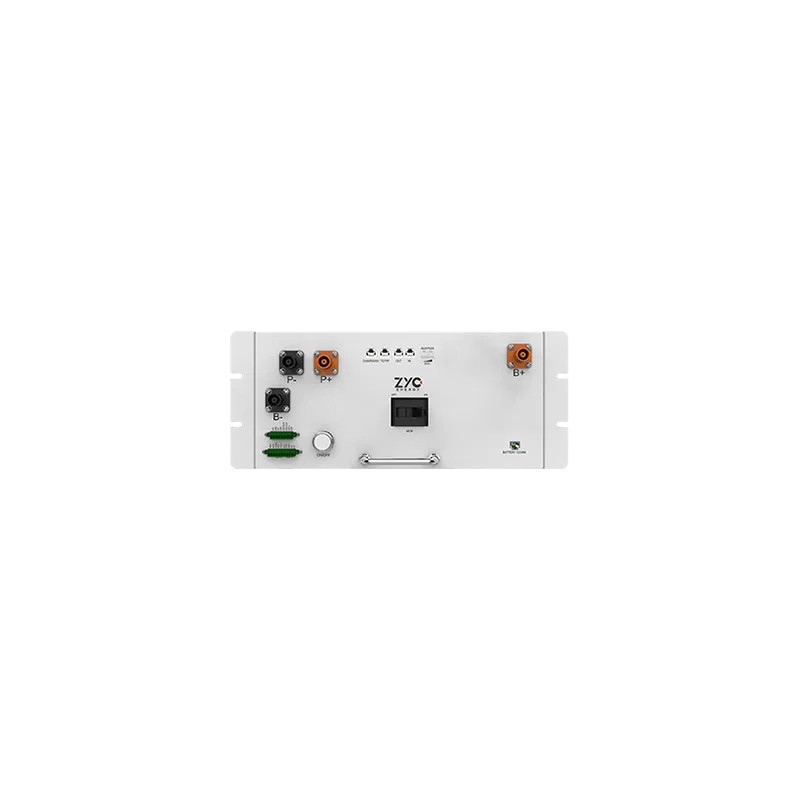

SIMPO HV Pro BMS-Unit

The SIMPO HV Pro from ZYC Energy is the compact power block for commercial applications. With a usable capacity of up to 72.6 kWh, it can be flexibly combined with well-known manufacturers such as SMA, GoodWe, Kaco and many more. Suitable for a wide range of scenarios from on-grid, backup to off-grid. Larger systems can also be implemented with up to 16 units connected in parallel. In addition to a multi-level security concept, each cabinet also contains an intelligent fire extinguishing system.

Product features:

• Working voltage: 200 - 1000 V DC

• Charging current: 200 A

• Interfaces: CAN, RS485, Modbus TCI / IP

• System structure: 6 - 9 storage modules

• Cascadable: up to 16 cabinets in parallel

• Protection class: IP55

• Cooling: passive

• Dimensions: 200 x 490 x 545 mm (H x W x D)

• Weight: 15.0 kg

• Warranty: 10 years
