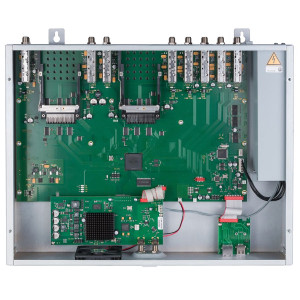

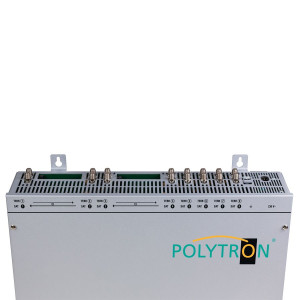

Polytron PCU8112 4CI + 4FTA Compact Headend S2/T2/CDVB-C(T)
  • Polytron PCU8112 4CI + 4FTA Compact Headend S2/T2/CDVB-C(T)
  • Polytron PCU8112 4CI + 4FTA Compact Headend S2/T2/CDVB-C(T)
  • Polytron PCU8112 4CI + 4FTA Compact Headend S2/T2/CDVB-C(T)
  • Polytron PCU8112 4CI + 4FTA Compact Headend S2/T2/CDVB-C(T)
  • Polytron PCU8112 4CI + 4FTA Compact Headend S2/T2/CDVB-C(T)
  • Polytron PCU8112 4CI + 4FTA Compact Headend S2/T2/CDVB-C(T)

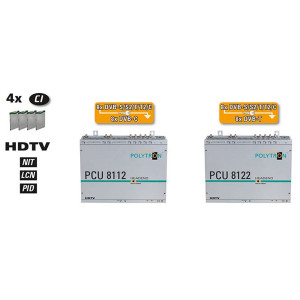

Polytron PCU8112 4CI + 4FTA Compact Headend S2/T2/CDVB-C(T)

POL.5552270
Polytron

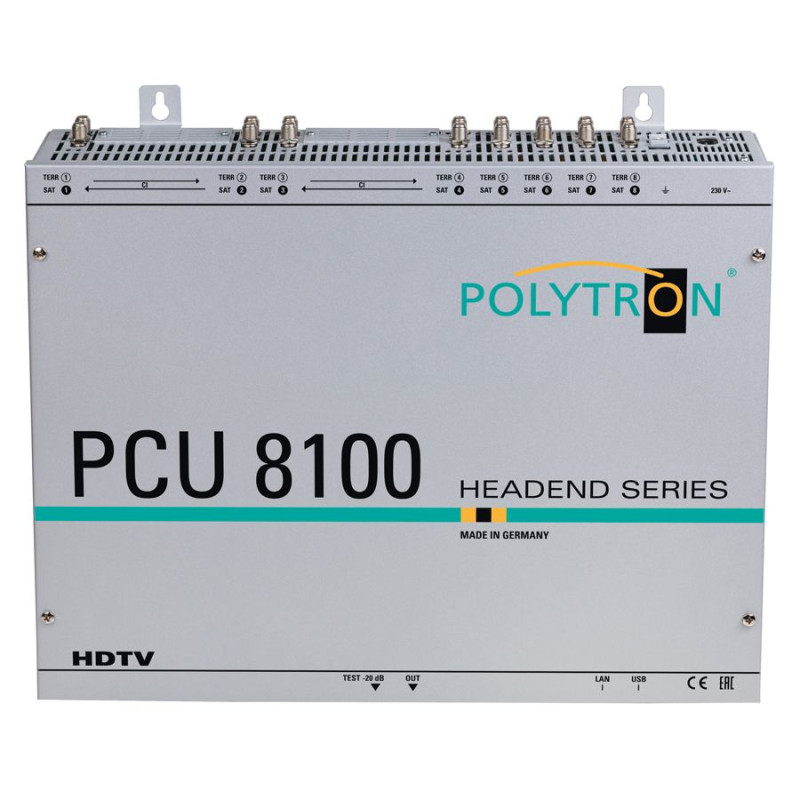

Polytron PCU 8112 compact headend
€ 4.278,56
€ 4.278,56 € 3.536,00 € 4.278,56 € 3.536,00
Inclusief belasting Inclusief belasting Exclusief belasting Inclusief belasting Exclusief belasting
€ 3.536,00 Exclusief belasting
€ 4.278,56 Inclusief belasting
€ 742,56 BTW
€ 3.536,00 Exclusief belasting
€ 742,56 BTW
€ 4.278,56 Inclusief belasting
Aantal
Niet op voorraad (informeer naar de levertijd)

Omschrijving

Headend om gecodeerd en free-to-air signaal te combineren

De Polytron PCU 8112 headend maakt gecombineerd verwerken van gecodeerde en free-to-air-signalen mogelijk. Overal waar Pay-TV en free-to-air-kanalen moeten worden gecombineerd, biedt de PCU 8112 een goede oplossing.

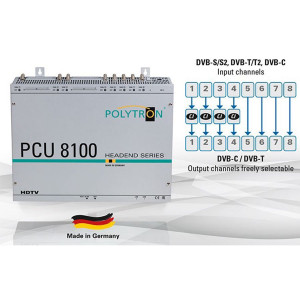

Ontvangstmodus per ingang instelbaar

U kunt de ontvangstmodus van elk van de 8 ingangen individueel selecteren: DVB-S/DVB-S2, DVB-T/DVB-T2 of DVB-C. Van de 8 kanalen zijn er 4 voorzien van een CI-interface voor het decoderen van gecodeerde signalen.

DVB-C uitsturen

De compacte headend van Polytron stuurt de verwerkte signalen standaard DVB-C uit. De Polytron PCU 8112 is te herprogrammeren om DVB-T uit te sturen.

Technische gegevens Polytron PCU 8112

  • Aantal ingangen: 8
  • Aantal CI-slots: 4
  • Ingangsniveau: 50-80dBμV
Demodulator
DVB-S/S2
  • SR DVB-S / QPSK: 1-45 MS/s
  • SR DVB-S2 / QPSK: 1-45 MS/s
  • SR DVB-S2 / 8PSK: 1-45 MS/s
  • Modulatie: 8PSK / QPSK
  • CR DVB-S / QPSK: 1/4, 1/3, 2/5, 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
  • CR DVB-S2 / 8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10
  • Roll-off: 0.35, 0.25, 0.20
DVB-T
  • Modulatie: QPSK, 16QAM, 64QAM
  • FFT: 2K, 8K
  • Bandbreedte: 7, 8 MHz
  • Code snelheid: 1/2, 2/3, 3/4, 5/6, 7/8
  • Guard interval: 1/4, 1/8, 1/16, 1/32
DVB-T2
  • Modulatie: QPSK, 16QAM, 64QAM, 256QAM
  • FFT: 1K, 2K, 4K, 8K, 16K, 32K
  • Bandbreedte: 7, 8 MHz
  • Code snelheid: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6
  • Guard interval: 1/4, 5/32, 1/8, 5/64, 1/16, 1/32, 1/64, 1/128
DVB-C
  • Modulatie: 16QAM, 32QAM, 64QAM, 128QAM, 256QAM
  • Symboolsnelheid: 7,2 MS/s
  • Bandbreedte: 6, 7, 8 MHz
Uitgangsmodulatie
  • Standaard uitgangsmodulatie: DVB-C (programmeerbaar naar DVB-T)
  • Uitgangskanalen: 8
  • Frequentiebereik: 112-862 MHz
  • Constellatie: 16, 32, 64, 128, 256 QAM
  • Symboolsnelheid: 1-7,2 MS/s
  • FEC: -
  • Bandbreedte: 7, 8 MHz
  • Aantal carriers: -
  • Uitgangsniveau: 90 dBμV
  • Regelbare kanaaldemping: 0-12 dB
  • MER: >40 dB
  • Energieverbruik: 45 W
  • Bedrijfsspanning: 180-265W, 50/60 Hz
  • Afmeting: 428 x 331 x 103 mm
Productdetails
POL.5552270
16 andere producten in dezelfde categorie:
Nieuw Polytron PCU8610 FTA Compact Headend DVB-S2DVB-C 4x8 switch

Referentie: POL.5552260

Merk: Polytron

Polytron PCU8610 FTA Compact Headend DVB-S2DVB-C 4x8 switch

Polytron PCU8610 FTA Compact Headend DVB-S2>DVB-C
€ 3.130,27
€ 3.130,27 incl. btw
€ 2.587,00 excl. btw
€ 2.587,00 excl. btw
€ 3.130,27 incl. btw
€ 3.130,27 incl. btw
€ 543,27 BTW
€ 2.587,00 excl. btw
€ 2.587,00 excl. btw
€ 543,27 BTW
€ 3.130,27 incl. btw
Meer Polytron PCU8610 FTA Compact Headend DVB-S2DVB-C 4x8 switch
Niet op voorraad (informeer naar de levertijd)
Op voorraad: 0
Nieuw Triax TDmH V-secure DRM (48 serv.)

Referentie: TRX.418755

Merk: Triax

Triax TDmH V-secure DRM (48 serv.)

€ 689,70
€ 689,70 incl. btw
€ 570,00 excl. btw
€ 570,00 excl. btw
€ 689,70 incl. btw
€ 689,70 incl. btw
€ 119,70 BTW
€ 570,00 excl. btw
€ 570,00 excl. btw
€ 119,70 BTW
€ 689,70 incl. btw
Meer Triax TDmH V-secure DRM (48 serv.)
Niet op voorraad (informeer naar de levertijd)
Op voorraad: 0
Nieuw Polytron ESM 1716 FX SAT IF switch matrix fixed Polytron ESM 1716 FX SAT IF switch matrix fixed

Referentie: POL.5552290

Merk: Polytron

Polytron ESM 1716 FX SAT IF switch matrix fixed

Polytron ESM 1716 FX matrix switch
€ 1.462,89
€ 1.462,89 incl. btw
€ 1.209,00 excl. btw
€ 1.209,00 excl. btw
€ 1.462,89 incl. btw
€ 1.462,89 incl. btw
€ 253,89 BTW
€ 1.209,00 excl. btw
€ 1.209,00 excl. btw
€ 253,89 BTW
€ 1.462,89 incl. btw
Meer Polytron ESM 1716 FX SAT IF switch matrix fixed
Niet op voorraad (informeer naar de levertijd)
Op voorraad: 0
Nieuw QM encoder DEM-51232 IP Mux to DVB-C, 32 QAM uit incl. PSU QM encoder DEM-51232 IP Mux to DVB-C, 32 QAM uit incl. PSU

Referentie: ART.604210

Merk: QM

QM encoder DEM-51232 IP Mux to DVB-C, 32 QAM uit incl. PSU

QM encoder DEM-51232 IP Mux to DVB-C, 32 QAM uit incl. PSU
€ 4.797,65
€ 4.797,65 incl. btw
€ 3.965,00 excl. btw
€ 3.965,00 excl. btw
€ 4.797,65 incl. btw
€ 4.797,65 incl. btw
€ 832,65 BTW
€ 3.965,00 excl. btw
€ 3.965,00 excl. btw
€ 832,65 BTW
€ 4.797,65 incl. btw
Meer QM encoder DEM-51232 IP Mux to DVB-C, 32 QAM uit incl. PSU
Laatste items in voorraad
Op voorraad: 1
Nieuw Triax TDcH 4 Media Player licentie

Referentie: TRX.418781

Merk: Triax

Triax TDcH 4 Media Player licentie

€ 813,79
€ 813,79 incl. btw
€ 672,56 excl. btw
€ 672,56 excl. btw
€ 813,79 incl. btw
€ 813,79 incl. btw
€ 141,24 BTW
€ 672,56 excl. btw
€ 672,56 excl. btw
€ 141,24 BTW
€ 813,79 incl. btw
Meer Triax TDcH 4 Media Player licentie
Niet op voorraad (informeer naar de levertijd)
Op voorraad: 0
Nieuw Lemco SCL-834CT 8 X DVB-S/S2/S2X  DVBT/C+IP Lemco SCL-834CT 8 X DVB-S/S2/S2X  DVBT/C+IP

Referentie: LEM.SCL-834CT

Merk: Lemco

Lemco SCL-834CT 8 X DVB-S/S2/S2X DVBT/C+IP

€ 2.988,70
€ 2.988,70 incl. btw
€ 2.470,00 excl. btw
€ 2.470,00 excl. btw
€ 2.988,70 incl. btw
€ 2.988,70 incl. btw
€ 518,70 BTW
€ 2.470,00 excl. btw
€ 2.470,00 excl. btw
€ 518,70 BTW
€ 2.988,70 incl. btw
Meer Lemco SCL-834CT 8 X DVB-S/S2/S2X DVBT/C+IP
Niet op voorraad (informeer naar de levertijd)
Op voorraad: 0
Nieuw Triax TDmH IP-out 48 license (48 IP-out)

Referentie: TRX.418751

Merk: Triax

Triax TDmH IP-out 48 license (48 IP-out)

€ 968,02
€ 968,02 incl. btw
€ 800,02 excl. btw
€ 800,02 excl. btw
€ 968,02 incl. btw
€ 968,02 incl. btw
€ 168,00 BTW
€ 800,02 excl. btw
€ 800,02 excl. btw
€ 168,00 BTW
€ 968,02 incl. btw
Meer Triax TDmH IP-out 48 license (48 IP-out)
Niet op voorraad (informeer naar de levertijd)
Op voorraad: 0

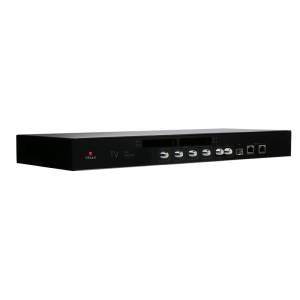

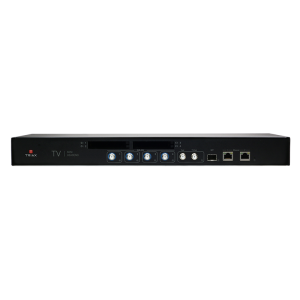

Nieuw Triax TDmH 8Si 8 x DVB-S2X to 8 x QAM or COFDM with 4 CI Triax TDmH 8Si 8 x DVB-S2X to 8 x QAM or COFDM with 4 CI
€ 2.662,00
€ 2.662,00 incl. btw
€ 2.200,00 excl. btw
€ 2.200,00 excl. btw
€ 2.662,00 incl. btw
€ 2.662,00 incl. btw
€ 462,00 BTW
€ 2.200,00 excl. btw
€ 2.200,00 excl. btw
€ 462,00 BTW
€ 2.662,00 incl. btw
Meer Triax TDmH 8Si 8 x DVB-S2X to 8 x QAM or COFDM with 4 CI
Laatste items in voorraad
Op voorraad: 1
Nieuw Triax TDmH 4 Media Player licentie

Referentie: TRX.418786

Merk: Triax

Triax TDmH 4 Media Player licentie

€ 813,79
€ 813,79 incl. btw
€ 672,56 excl. btw
€ 672,56 excl. btw
€ 813,79 incl. btw
€ 813,79 incl. btw
€ 141,24 BTW
€ 672,56 excl. btw
€ 672,56 excl. btw
€ 141,24 BTW
€ 813,79 incl. btw
Meer Triax TDmH 4 Media Player licentie
Niet op voorraad (informeer naar de levertijd)
Op voorraad: 0

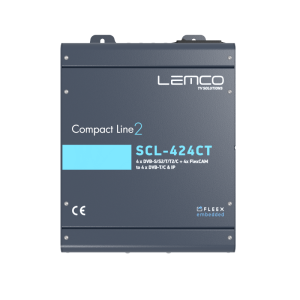

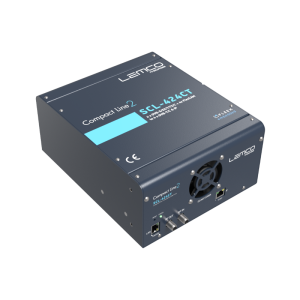

Nieuw Lemco SCL-424CT+CI 4 X DVB-S/S2/T/T2/C DVB-T/C+IP Lemco SCL-424CT+CI 4 X DVB-S/S2/T/T2/C DVB-T/C+IP

Referentie: LEM.SCL-424CT+CI

Merk: Lemco

Lemco SCL-424CT+CI 4 X DVB-S/S2/T/T2/C DVB-T/C+IP

€ 2.988,70
€ 2.988,70 incl. btw
€ 2.470,00 excl. btw
€ 2.470,00 excl. btw
€ 2.988,70 incl. btw
€ 2.988,70 incl. btw
€ 518,70 BTW
€ 2.470,00 excl. btw
€ 2.470,00 excl. btw
€ 518,70 BTW
€ 2.988,70 incl. btw
Meer Lemco SCL-424CT+CI 4 X DVB-S/S2/T/T2/C DVB-T/C+IP
Niet op voorraad (informeer naar de levertijd)
Op voorraad: 0
Nieuw

Referentie: POL.5552215

Merk: Polytron

Polytron PCU8510 FTA Compact Headend DVB-S2 DVB-C

Polytron PCU8510 FTA Compact Headend DVB-S2 >DVB-C
€ 2.658,37
€ 2.658,37 incl. btw
€ 2.197,00 excl. btw
€ 2.197,00 excl. btw
€ 2.658,37 incl. btw
€ 2.658,37 incl. btw
€ 461,37 BTW
€ 2.197,00 excl. btw
€ 2.197,00 excl. btw
€ 461,37 BTW
€ 2.658,37 incl. btw
Meer Polytron PCU8510 FTA Compact Headend DVB-S2 DVB-C
Niet op voorraad (informeer naar de levertijd)
Op voorraad: 0
Nieuw Triax TDcH 100 IP-OUT licentie

Referentie: TRX.418740

Merk: Triax

Triax TDcH 100 IP-OUT licentie

€ 2.071,52
€ 2.071,52 incl. btw
€ 1.712,00 excl. btw
€ 1.712,00 excl. btw
€ 2.071,52 incl. btw
€ 2.071,52 incl. btw
€ 359,52 BTW
€ 1.712,00 excl. btw
€ 1.712,00 excl. btw
€ 359,52 BTW
€ 2.071,52 incl. btw
Meer Triax TDcH 100 IP-OUT licentie
Niet op voorraad (informeer naar de levertijd)
Op voorraad: 0
Nieuw Polytron ESM 1716 WEB/RS SAT IF switch matrix web based cont Polytron ESM 1716 WEB/RS SAT IF switch matrix web based cont

Referentie: POL.5552286

Merk: Polytron

Polytron ESM 1716 WEB/RS SAT IF switch matrix web based cont

Polytron ESM 1716 WEB/RS matrix switch
€ 1.698,84
€ 1.698,84 incl. btw
€ 1.404,00 excl. btw
€ 1.404,00 excl. btw
€ 1.698,84 incl. btw
€ 1.698,84 incl. btw
€ 294,84 BTW
€ 1.404,00 excl. btw
€ 1.404,00 excl. btw
€ 294,84 BTW
€ 1.698,84 incl. btw
Meer Polytron ESM 1716 WEB/RS SAT IF switch matrix web based cont
Niet op voorraad (informeer naar de levertijd)
Op voorraad: 0

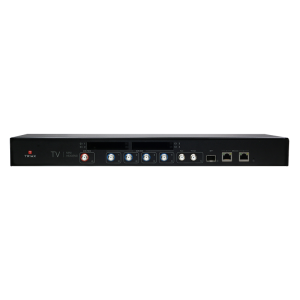

Nieuw Triax TDmH 14STC-I 8xDVB-S2X & 6DVB-T2/C to 8xDVB-T/C + 4CI Triax TDmH 14STC-I 8xDVB-S2X & 6DVB-T2/C to 8xDVB-T/C + 4CI
