Polytron ESM 1716 WEB SAT IF switch matrix web based control
  • Polytron ESM 1716 WEB SAT IF switch matrix web based control
  • Polytron ESM 1716 WEB SAT IF switch matrix web based control

Polytron ESM 1716 WEB SAT IF switch matrix web based control

POL.5552282
Polytron
Polytron ESM 1716 WEB matrix switch
€ 1.604,46
€ 1.604,46 € 1.326,00 € 1.604,46 € 1.326,00
Inclusief belasting Inclusief belasting Exclusief belasting Inclusief belasting Exclusief belasting
€ 1.326,00 Exclusief belasting
€ 1.604,46 Inclusief belasting
€ 278,46 BTW
€ 1.326,00 Exclusief belasting
€ 278,46 BTW
€ 1.604,46 Inclusief belasting
Aantal
Niet op voorraad (informeer naar de levertijd)

Omschrijving

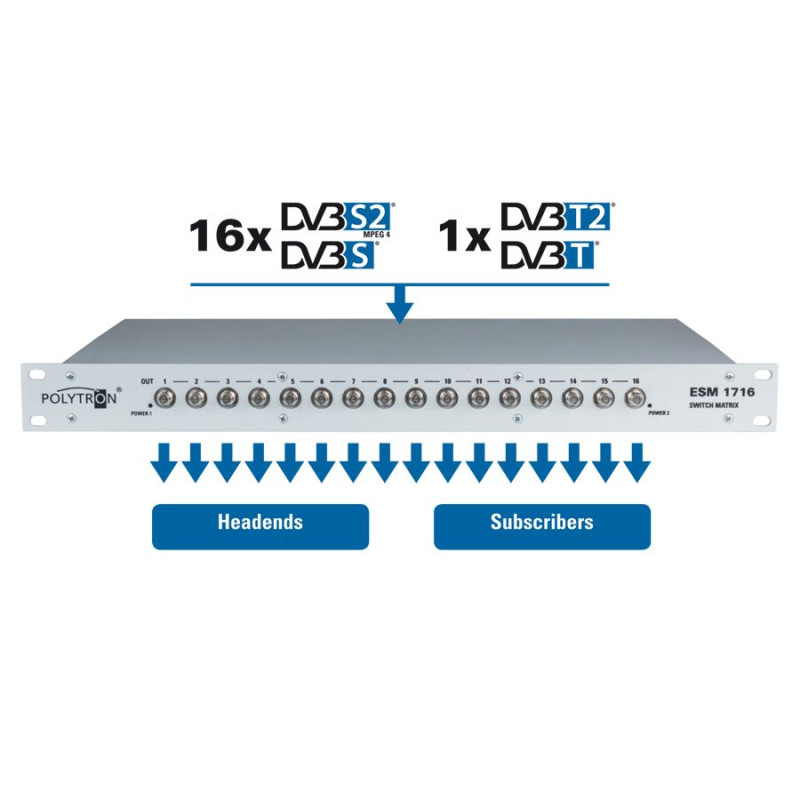

SAT IF switch matrix met 16 uitgangen (16 x DVB-S/S2, 1x DVB-T/T2)

Polytron ESM 1716 WEB is een flexibele SAT IF switch matrix die wordt ingezet als distributiepaneel voor headends, om DVB-S/S2 en DVB-T/T2 signalen te distribueren naar 16 uitgangen.

Polytron heeft de ESM 1716 WEB voorzien van 16 satellietingangen en een TER-input. De geselecteerde polarisatieniveaus zijn beschikbaar op alle 16 uitgangen.

Web-based besturing

De matrix switch ondersteunt web-based besturing zodat u het uitgangssignaal makkelijk op afstand kunt aanpassen. De ingangsverdeling blijft ongewijzigd.

Toepassingen van deze matrix switch

  • Veranderde transponderfrequenties snel aanpassen
  • Eenvoudig het programma-aanbod aanpassen (bijv. programma's in vreemde talen in hotels)
  • Gemakkelijk activeren van smartcards, waarvan activeringsgegevens op een andere transponder staan

Technische specificaties Polytron ESM 1716 WEB

  • Aantal ingangen: 17
  • Aantal uitgangen: 16
  • Impedantie in- en uitgangen: 75 Ohm
  • Frequentiebereik
    • Ingang SAT: 950-2150 MHz
    • Uitgang: 10-2150 MHz
    • TER (optioneel): 18-862 MHz
  • Aansluitdemping
    • TER (optioneel): 16 dB
    • SAT: -4 ~ 0 dB (± 1,5)
  • Isolatie lines: 30 dB
  • Retourverlies in- en uitgangen: 12 dB
  • Uitgangsniveau
    • SAT: max. 103 dBµV
    • TER: passief
  • LNB spanning: 15 V
  • LNB stroomvoorziening: max. 500 mA per trunk line (gezamenlijk in totaal 2000 mA)
  • Stroomverbruik uitgangen: 35 mA
  • Voeding: 90-265 VAC (47-63 Hz), 15 VDC/3,3 A
  • Temperatuurbereik: 0 ~55 °C
  • Afmetingen (l x b x h): 482,6 x 310 x 44,5 mm
Productdetails
POL.5552282
