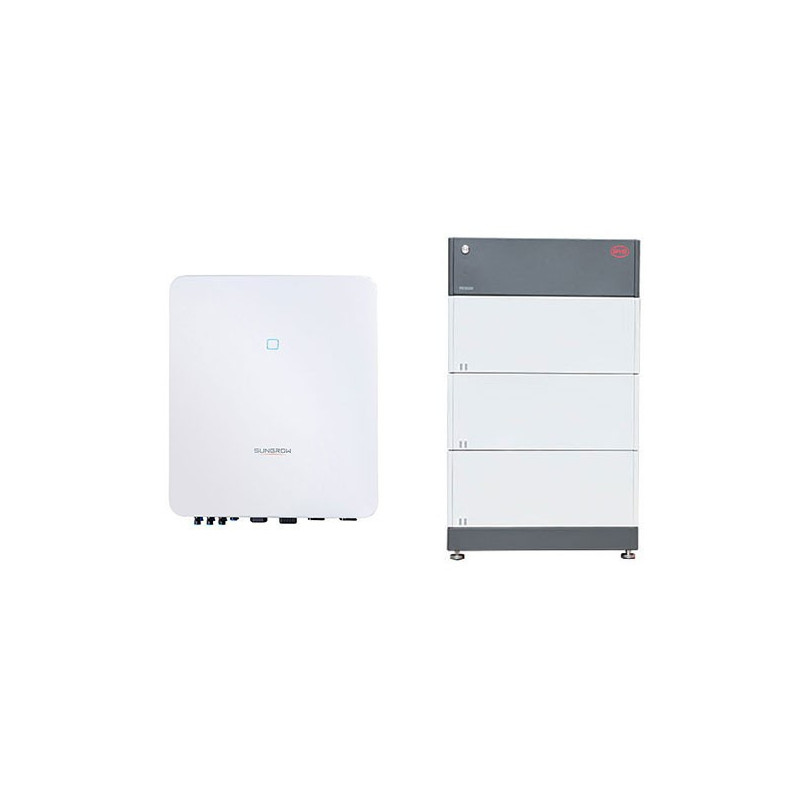

B-Box Premium HVS 7.7 + SH10.0RT-20-V11

This proven complete package from Sungrow and BYD is versatile and flexible. The hybrid inverter comes fully equipped, including Type 2 surge protection for the module and grid sides, as well as interfaces for Wi-Fi, network, and FRE. With up to 13.5 A input current per tracker, even current module series are no problem. The BYD HVS high-voltage storage system enables up to 12.8 kWh per tower and up to three units in parallel. Ideal for everything from home use to small commercial applications. Even faster installation thanks to the new BCU 2.0 and compatible with many leading manufacturers.

Product advantages:

• Suitable for high-performance modules

• Storage can be expanded indefinitely

• Up to 5 systems in parallel operation

System product features:

• AC power: 10.0 kW

• Number of MPPTs: 2

• DC input current: 27.0 A (MPPT 2)

• AC connection: 400 V, 3-phase

• Communication: WiFi, LAN, RS485, CAN, 4 x DI (FRE), 1 x DO (WP)

• Protection class: IP65

• Cooling: passive

• Dimensions: 540 x 470 x 170 mm (L x W x H)

• Weight: 27.0 kg

• Warranty: 10 years

• Includes WiNet dongle and smart meter

Storage product features:

• Battery capacity (usable): 7.68 kWh

• Nominal voltage: 204.8 V

• Expansion time window: unlimited

• Configuration per unit: 2 to 5 Battery modules

• Number of units in parallel: 3

• Cell chemistry: LFP

• COM ports: RJ45

• BAT ports: MC4

• Protection class: IP55

• Dimensions: 995 x 585 x 298 mm (HxWxD)

• Weight: 129.0 kg

Conclusion:

All included, ready-made, flexible to use and expand.

Scope of delivery:

• 1 x Sungrow SH10.0RT-20-V11 hybrid inverter, including WiNet dongle and meter (item 0154117)

• 1 x BYD B-Box Premium HV BCU + Base 2.0 (item 0159471)

• 3 x BYD HVS storage modules (item 0131385)
