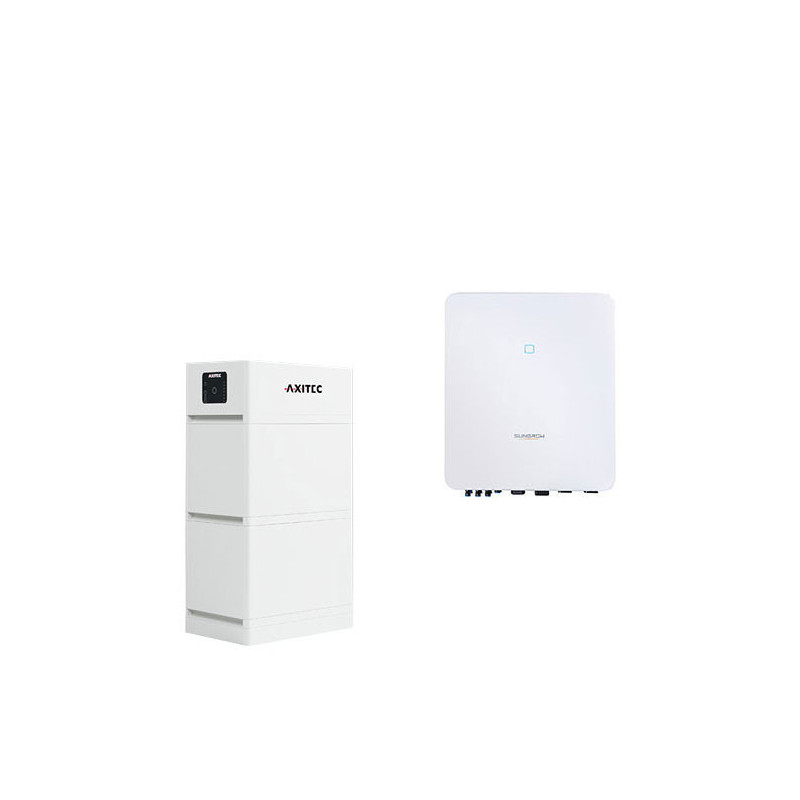

AXIstorage Li SV2 6.7 + SH8.0RT
AXIstorage Li SV2 6.7 + SH8.0RT
Description
WiNet module (for WLAN and LAN / Ethernet connection) and 3-phase meter are included in the scope of delivery of the inverter.
Set consisting of:
2x 0150761 (AXIstoreage Li SV2 Energypack (3.37 kWh))
1x 0152359 (AXIstorage Li SV2 Battery Management System)
1x 0152288 (Sungrow SH8.0RT-V112)
? Useable Capacity: 6.7 kWh
? Nominal Voltage: 192 V
? Nominal Capacity: 37 Ah
? Maximum Continuous Charging Current: 18.5 A
? Maximum Continuous Discharge Current: 18.5 A
? Efficiency: up to 96 %
? Cooling: passive
? Range of Temperature: 0 - 50 ?C
? Max. Air Humidity (not condensing): 95 %
? Technology: Lithium Iron Phosphate (LFP)
? Protection Category: IP55
? Certifications / Standards: VDE2510-50, IEC62619, IEC62477-1, IEC62040-1, CEC, CE, UN38.3
Key technical data
| Dangerous goods transportation category | 2 |
|---|---|
| Dangerous goods description | LITHIUM ION BATTERIES |
| Tunnel restriction code | (AND) |
| Dangerous goods Weight (net) (kg) | 109.000 |
| Classification code | M4 |
| Dangerous goods class | 9 |
| Dangerous goods packaging type | 4G |
| A No. | 3480 |
