B-Box HVM+ 16.6 + Symo GEN24 SC 12.0 Plus
  • B-Box HVM+ 16.6 + Symo GEN24 SC 12.0 Plus

B-Box HVM+ 16.6 + Symo GEN24 SC 12.0 Plus

0162932
B-Box HVM+ 16.6 + Symo GEN24 12.0 SC Plus
€11,920.82
Tax included
Quantity
69 Items

Ask about the product on WhatsApp
Description
The combination with components from the previous HVM series is not possible.
The included RJ45 termination connector for the data bus requires on-site assembly. This involves inserting and crimping a wire bridge between pins 1 and 6 (viewed from above on the flat side of the connector with the pin contact surfaces, cable entry facing downwards, pins ascending from left to right). No actual resistor is require
The Symo GEN24 12.0 SC is the latest addition to the Fronius GEN24 family. Like its smaller siblings, the SC is available as a fully-fledged hybrid or battery-ready system. The "Plus" in the SC designation makes all the difference. You decide whether and when to activate this function using an activation code. The smart PV-Point emergency power connection with a maximum output of 3 kW is active in every configuration and can now be used continuously with a minor upgrade. All other functions and interfaces remain tried and tested. This version is combined with the new HVM+ storage system from BYD. The automatic SOC balancing optimizer eliminates the need for manual adjustments to the charge level during initial installation and expansion. The redesigned BCU connection management system with connectors at the power and communication levels saves even more valuable installation time.
The smart PV-Point emergency power connection with a maximum output of 3 kW is active in every configuration and can now be used continuously with a minor upgrade.

Product advantages:
? Proven and high-performance hybrid system
? Emergency power via Fronius PV-Point, optionally also for continuous use
? 3-phase backup power possible with Fronius Backup Switch + Controller
? Automatic SOC balancing during initial installation or storage expansion
? Storage capacity expandable indefinitely

System product specifications:
? AC power: 12.0 kW
? AC connection: 400V, 3-phase
? Number of MPPTs: 2
? DC input current: MPPT 1 - 28.0 A, MPPT 2 - 14.0 A
? Communication: WLAN, Ethernet, 2 x RS485
? Interfaces: 6 x DI (FRE), 6 x DO
? Protection class: IP66
? Cooling: active
? Dimensions: 595 x 529 x 180 mm (H x W x D)
? Weight: 22.8 kg

Storage product specifications:
? Battery capacity (usable): 16.56  kWh
? Storage type: High voltage
? Nominal voltage: 307.2  V
? Expansion time window: Unlimited
? Number of storage modules in one unit: 4 to 8
? Number of units in parallel: 3
? Cell chemistry: LFP
? COM ports: RJ45
? BAT ports: MC4
? Protection class: IP55
? Dimensions: 1707 x 610 x 282 mm (H x W x D)
? Weight: 263.0  kg

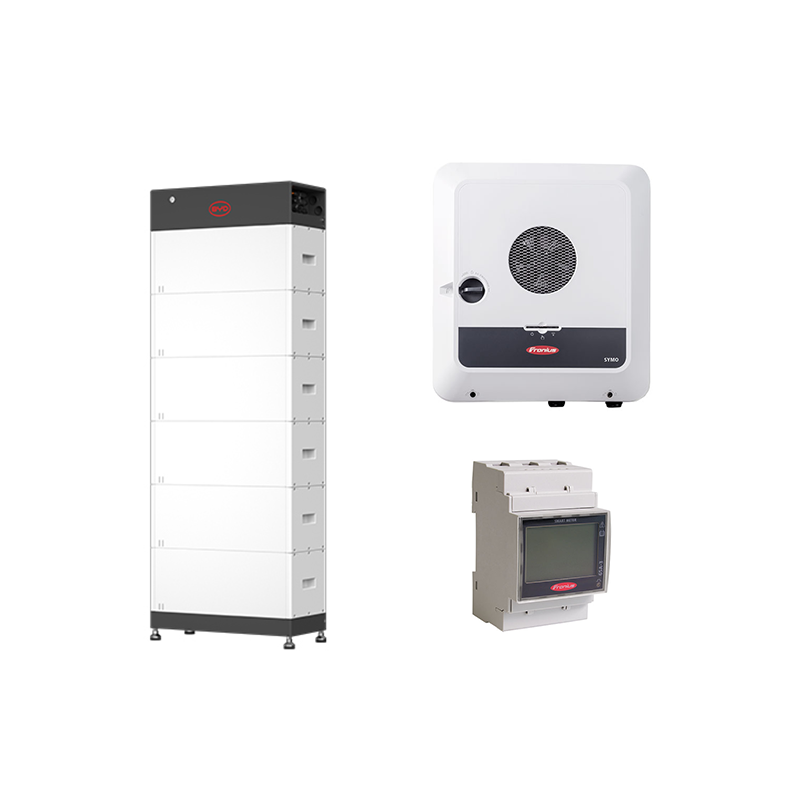

Scope of delivery:
? 1 x Fronius Symo GEN24 12.0 SC Plus hybrid inverter (item 0156755)
? 1 x Fronius Smart Meter TS 65A-3 (item 0151650)
? 1 x BYD B-Box HV BCU + Base (item 0161507)
? 6 x BYD HVM+ storage module (item 0161505)

Key technical data

Dangerous goods transportation category 2
Dangerous goods description LITHIUM ION BATTERIES
Tunnel restriction code (AND)
Classification code M4
Dangerous goods Weight (net) (kg) 247.800
Dangerous goods class 9
Dangerous goods packaging type 4G
A No. 3480
