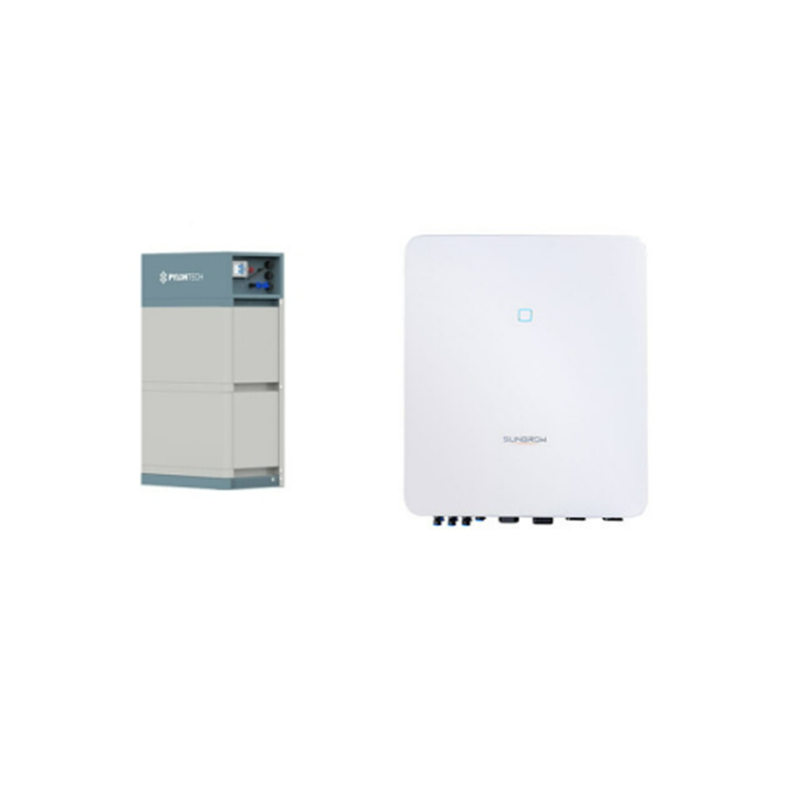

Pylontech Force H2 6.7 + Sungrow SH6.0RT-V112

The powerful combination of the proven Sungrow hybrid inverters with the flexible Pylontech Force H1 storage creates the best conditions for all areas of application. With power classes from 5 to 10 kW, there is a suitable device for every house. By connecting up to 5 systems in parallel, applications in the small commercial sector are also conceivable. And with up to 23.6 kWh usable storage capacity, you don't have to worry about a power outage either.

Product advantages:

• Strong combination of well-known manufacturers

• Backup power operation via backup connection

• Integrated AC + DC overvoltage protection type 2

• Storage can be expanded up to 23.6 kWh

• Up to 5 systems in parallel operation

Product features system:

• AC power: 6.0 kW

• Number of MPPT: 2

• AC connection: 3-phase

• Communication: Wifi, LAN, RS485, CAN, 4 x DI (FRE), 1 x DO

• Protection class: IP65

• Cooling: passive

• Weight: 27.0 kg

• Including WiNet Dongle and Smart Meter

Product features memory:

• Battery capacity (usable): 6.7 kWh

• Time window extension: 2 years

• Cell chemistry: LFP

• Rated Voltage: 192V

• Protection class: IP55

• Dimensions: 815 x 450 x 296 mm (HxWxD)

• Weight: BCU 21.0 kg, 2 x accumulators each 38.0 kg

Conclusion:

Quick and easy installation, easy start-up via smartphone, plus flexibly expandable memory - that's how a memory package should be.

Scope of delivery:

• 1 x Sungrow SH6.0RT-V112 Hybrid WR, incl. WiNet dongle and meter

         (Item 0152287)

• 1 x Pylontech Force-H2 Battery Management System (item 0152523)

• 2 x Pylontech Force-H2 memory module (item 0132232)
