Triax TDH 816 Frontend DVB-C
  • Triax TDH 816 Frontend DVB-C
  • Triax TDH 816 Frontend DVB-C
  • Triax TDH 816 Frontend DVB-C

Triax TDH 816 Frontend DVB-C

TRX.692824
Triax

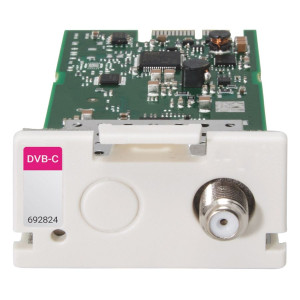

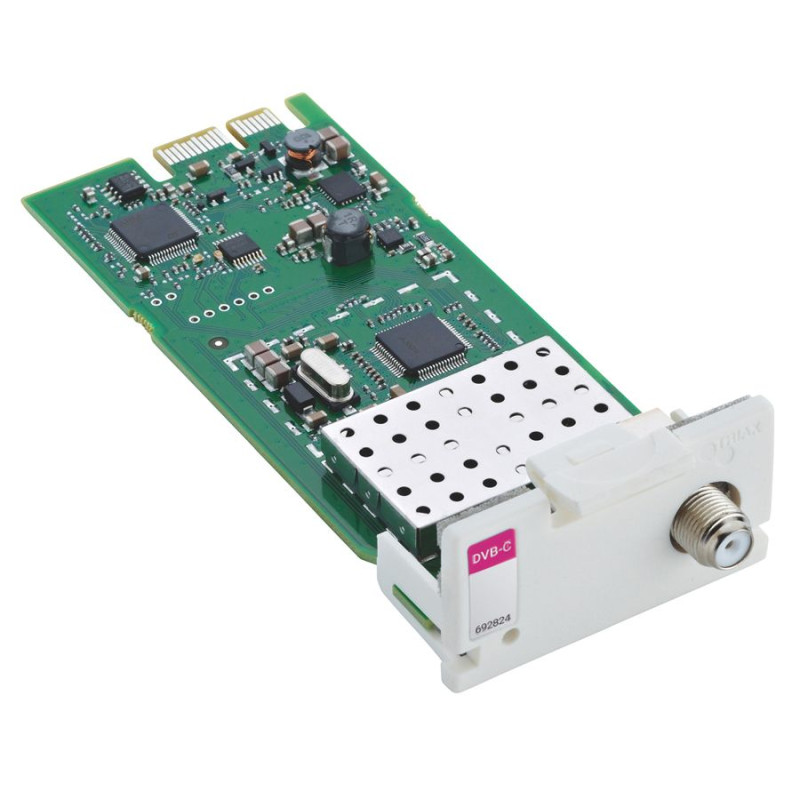

Triax TDH 816 DVB-C frontend module
€ 254,10
€ 254,10 € 210,00 € 254,10 € 210,00
Inclusief belasting Inclusief belasting Exclusief belasting Inclusief belasting Exclusief belasting
€ 210,00 Exclusief belasting
€ 254,10 Inclusief belasting
€ 44,10 BTW
€ 210,00 Exclusief belasting
€ 44,10 BTW
€ 254,10 Inclusief belasting
Aantal
Laatste items in voorraad
3 Items

Omschrijving

Frontend module voor DVB-C (1 complete mux)

De Triax TDH 816 DVB-C is een frontend module die in alle inputslots van het TDH 800 headend past. De module ontvangt een complete mux digitale kabelsignalen en stuurt alle services naar de Triax TDH 800 pool.

De TDH 816 ondersteunt zowel HD- als SD-services. Hij converteert DVB-C naar COFDM, QAM en/of PAL.

Om deze module te gebruiken is firmwareversie 4.7 of nieuwer vereist.

Technische gegevens Triax TDH 816 DVB-C frontend module

  • Aantal inputs: 1
  • Connector: F-connector (female)
  • Type demodulator: QAM
  • Symbolrate demodulator: 1,8 tot 7,2 Msym/s
  • Input QAM modes: 16QAM, 64QAM, 128QAM, 256QAM
  • Ingangsniveau QAM256: -61 tot -31 dBµV
  • Ingangsniveau QAM64: -65 tot -35 dBµV
  • Input frequentiebereik: 114-858 MHz
  • Bandbreedte: 8 MHz
  • Input ruisgetal: < 7.0 dB
  • Input retourverlies: > 10 dB
  • Impedantie: 75 Ω
  • DC werkspanning: 12 VDC
  • DC stroomverbruik: 150 mA
  • Temperatuur (in bedrijf): -10 tot +50 °C
  • Temperatuur (opslag): -20 tot +70 °C
  • Luchtvochtigheid (in bedrijf): 20 tot 80 %
  • Luchtvochtigheid (opslag): 10 tot 90 %
  • Afmetingen (l x b x h): 132 x 50 x 32 mm
  • Gewicht: 47 gram
Productdetails
TRX.692824
3 Items
