Triax DVB-C Frontend for TDX
  • Triax DVB-C Frontend for TDX
  • Triax DVB-C Frontend for TDX
  • Triax DVB-C Frontend for TDX

Triax DVB-C Frontend for TDX

TRX.492024
Triax

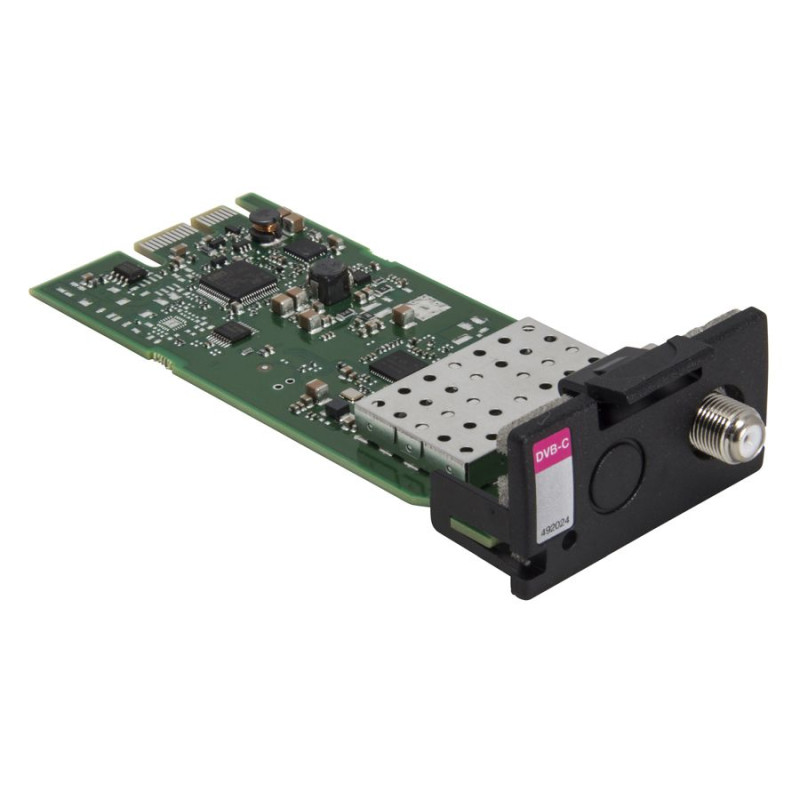

Triax TDX DVB-C frontend module
€ 314,60
€ 314,60 € 260,00 € 314,60 € 260,00
Inclusief belasting Inclusief belasting Exclusief belasting Inclusief belasting Exclusief belasting
€ 260,00 Exclusief belasting
€ 314,60 Inclusief belasting
€ 54,60 BTW
€ 260,00 Exclusief belasting
€ 54,60 BTW
€ 314,60 Inclusief belasting
Aantal
Op voorraad bij leverancier (leevertijd 1-3 werkdagen)
4 Items

Omschrijving

Digitale DVB-C signalen beschikbaar in de TDX pool

De Triax TDX DVB-C frontend module is een invoermodule voor de ontvangst van digitale kabelsignalen (DVB-C) en tevens een QAM demodulator. De module kan een volledige mux ontvangen en alle services van de MUX naar de TDX-pool sturen. De module bevat een tuner met geïntegreerde versterkingsregeling en kanaalfiltering en een QAM-demodulator met seriële transportstroominvoer naar het TDX-systeem.

U plaatst de DVB-C-module in de ingangssectie van het Triax TDX headend. Om de module te verwijderen heeft u geen gereedschap nodig en hoeft u de stroomtoevoer ook niet te onderbreken.

Technische gegevens Triax TDX DVB-C frontend module

  • Aantal inputs: 1
  • Connector in: F-connector (female)
  • Demodulator: 16 QAM, 64 QAM, 128 QAM, 256 QAM
  • Demodulator symbol rate: 1.8 tot 7.2 Msym/s
  • Input QAM modes 16 QAM, 64 QAM, 128 QAM, 256 QAM
  • Input level QAM64: 40-91 dBµV
  • Input level QAM256: 30-91 dBµV
  • Input level: 45-75 dBµV
  • Output video codec: MPEG-2 of MPEG-4
  • Input frequentiebereik: 114-858 MHz
  • Bandbreedte: 8 MHz
  • Input ruisgetal: < 7.0 dB
  • Input retourverlies: > 7.0 dB
  • Impedantie: 75 Ω
  • DC werkspanning: 12 ± 1 VDC
  • DC stroomverbruik: 120 mA
  • Temperatuur (in bedrijf): -10 tot +50 °C
  • Temperatuur (opslag): -20 tot +70 °C
  • Luchtvochtigheid (in bedrijf): 20-80 %
  • Luchtvochtigheid (opslag): 10-90 %
  • Afmetingen (H x D x B): 29 x 132 x 50 mm
  • Gewicht: 56 gram
Productdetails
TRX.492024
4 Items
