Triax TDX DVB-C (QAM) Backend CI
  • Triax TDX DVB-C (QAM) Backend CI
  • Triax TDX DVB-C (QAM) Backend CI

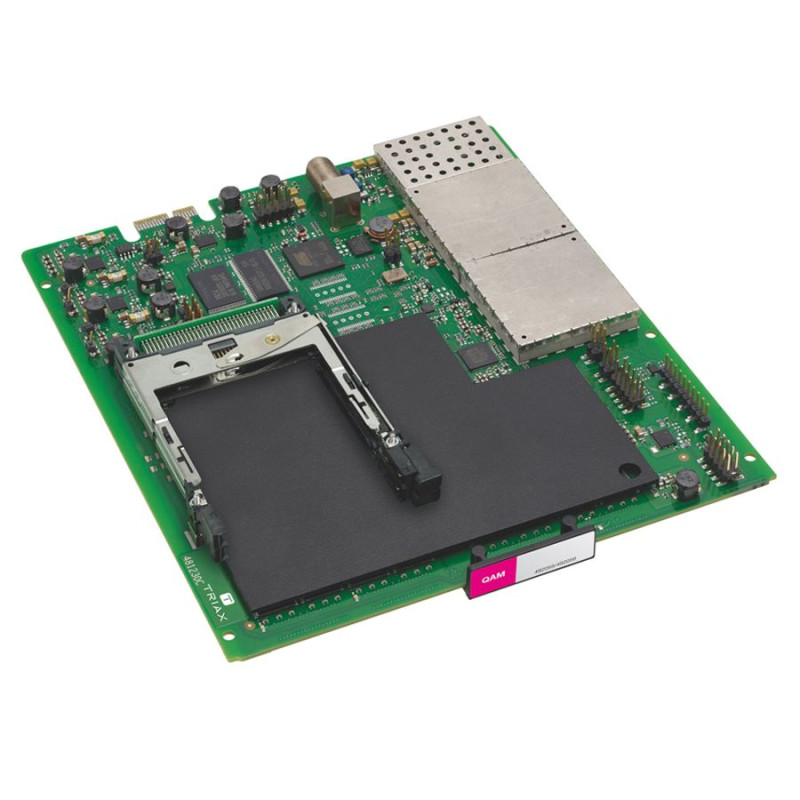

Triax TDX DVB-C (QAM) Backend CI

TRX.492056
Triax
Triax TDX Backend QAM output module DVB-C (Quad CI)
€ 2.662,00
€ 2.662,00 € 2.200,00 € 2.662,00 € 2.200,00
Inclusief belasting Inclusief belasting Exclusief belasting Inclusief belasting Exclusief belasting
€ 2.200,00 Exclusief belasting
€ 2.662,00 Inclusief belasting
€ 462,00 BTW
€ 2.200,00 Exclusief belasting
€ 462,00 BTW
€ 2.662,00 Inclusief belasting
Aantal
Laatste items in voorraad
1 Item

Omschrijving

Backend QAM output module DVB-C (Quad CI)

Met de Triax TDX Backend QAM output module (DVB-C) moduleert u 4 tv-programmapakketten uit de TDX-pool naar QAM-signalen met automatische multiplexing. De module biedt plek aan 2 CI-modules.

Technische gegevens Triax TDX Backend QAM output module (DVB-C)

  • Output QAM Modes: 16QAM, 32QAM, 64QAM, 128QAM, 256QAM
  • Uitgangsspectrum: Normaal
  • Uitgangsniveau: 100 dBµV
  • Uitgangsniveau aanpassing: +3 tot -17 dB
  • Output symboolsnelheid 3.15 - 7.2 Mbit/s
  • Spurious signaal: > 60 dB
  • Ondersteunde carrier: 2K
  • TER-FEC rate: 1/2, 2/3, 3/4, 5/6, 7/8
  • Reed Solomon decoder: 204 byte mode
  • Deinterleaver: I = 12
  • Roll-Off Factor: 15 %
  • FEC block code: RS 204, 188
  • MER: ≥ 41.0 dB (gemiddeld 42)
  • Bandbreedte: 7, 8 MHz
  • Output frequentiebereik: 50.5-858 MHz
  • Kanaalraster: 7, 8, 8.5 MHz
  • Frequentie stap: 250 kHz
  • Output retourverlies: > 10 dB
  • Impedantie: 75 Ω
  • Connector: F-connector (female)
  • CI-slots: 2
  • DC werkspanning: 12 ± 1 VDC
  • DC stroomverbruik: 900 mA
  • Temperatuur (in bedrijf): -10 tot +50 °C
  • Temperatuur (opslag): -20 tot +70 °C
  • Luchtvochtigheid (in bedrijf): 20 tot 80 %
  • Luchtvochtigheid (opslag): 10 tot 90 %
  • Afmetingen (H x D x B): 24 x 162 x 185 mm
  • Gewicht: 355 gram
Productdetails
TRX.492056
1 Item
