• Nieuw

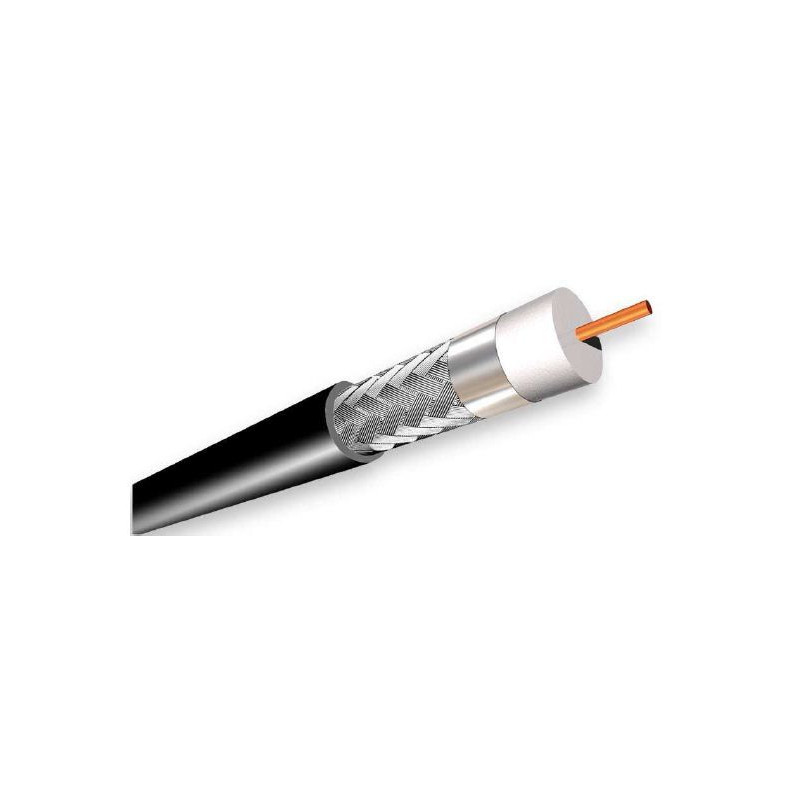

BCK Coax PRG11 PE per mtr.
  • BCK Coax PRG11 PE per mtr.

BCK Coax PRG11 PE per mtr.

ART.107086
BCK
€ 4,56
€ 4,56 € 3,77 € 4,56 € 3,77
Inclusief belasting Inclusief belasting Exclusief belasting Inclusief belasting Exclusief belasting
€ 3,77 Exclusief belasting
€ 4,56 Inclusief belasting
€ 0,79 BTW
€ 3,77 Exclusief belasting
€ 0,79 BTW
€ 4,56 Inclusief belasting
Aantal
Op voorraad bij leverancier (leevertijd 1-3 werkdagen)
5 Items

Omschrijving

PRG11 coaxkabel - per meter

Deze BCK coaxkabel PRG11 heeft een zuurbestendige PE-coating. We leveren deze per meter.

Technische gegevens BCK PRG11 coax (PE) haspel 500 meter


Construction
  • Inner Conductor Ø: 1,63mm solid copper
  • Insulation Ø: 7,30 mm, skin-foam-skin, gas injected PE
  • Outer Conductor: Al-Pet-Al tape bonded + Al wire braid 60%
  • Outer Sheath Ø: 10,30mm PVC black /PE black/HFFR black with meter-marking
Electrical characteristics
  • Impedance: 75 +/-3 Ohm
  • Capacitance: 52 pF/m
  • Velocity ratio: (v/c) 0,85
  • Sheath Spark Test: 8 KV
  • Transfer Impedance: Zt 5-30 MHz <15 mOhm/m
  • Screening Attenuation
    • As 30-1000 MHz: > 75 dB
    • As 1000-2000 MHz: > 75 dB
    • As 2000-3000 MHz: > 75 dB
  • DC resistance
    • Inner conductor: 9,0 Ohm/km
    • Outer conductor: 20,0 Ohm/km
  • Structural Return Loss
    • 5-30 MHz: > 23 dB
    • 30-470 MHz: > 23 dB
    • 470-1000 MHz: > 20 dB
    • 1000-2000 MHz: > 18 dB
    • 2000-3000 MHz: > 18 dB
  • Nominal attenuation (dB/100m)
    • 5 MHz: 1,10
    • 50 MHz: 3,00
    • 100 MHz: 4,10
    • 400 MHz: 8,00
    • 800 MHz: 11,50
    • 1000 MHz: 12,90
    • 1500 MHz: 16,10
    • 1750 MHz: 17,50
    • 2150 MHz: 20,00
    • 2400 MHz: 21,00
    • 3000 MHz: 24,00
Mechanical characteristics
  • Minimum Bending Radius
    • For one bend: 50 mm
    • For repeated bending: 100 mm
  • Maximum Tensile Force: 300 N
Other data
  • Standards: ΕΝ 50117
Productdetails
ART.107086
5 Items
