BCK Coax PRG11 PE 500 mtr

PRG11 coaxkabel - haspel 500 meter

Deze BCK coaxkabel PRG11 heeft een zuurbestendige PE-coating en zit op een haspel van 500 meter.

Technische gegevens BCK PRG11 coax (PE) haspel 500 meter

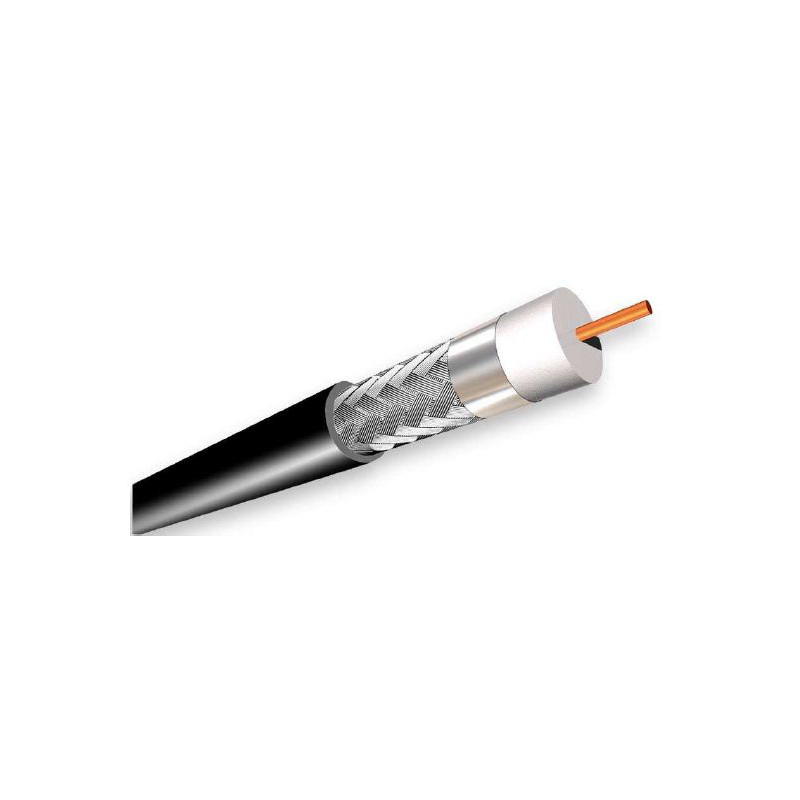

Construction

• Inner Conductor Ø: 1,63mm solid copper
• Insulation Ø: 7,30 mm, skin-foam-skin, gas injected PE
• Outer Conductor: Al-Pet-Al tape bonded + Al wire braid 60%
• Outer Sheath Ø: 10,30mm PVC black /PE black/HFFR black with meter-marking

Electrical characteristics

• Impedance: 75 +/-3 Ohm
• Capacitance: 52 pF/m
• Velocity ratio: (v/c) 0,85
• Sheath Spark Test: 8 KV
• Transfer Impedance: Zt 5-30 MHz <15 mOhm/m
• Screening Attenuation
• As 30-1000 MHz: > 75 dB
• As 1000-2000 MHz: > 75 dB
• As 2000-3000 MHz: > 75 dB
• DC resistance
  • Inner conductor: 9,0 Ohm/km
  • Outer conductor: 20,0 Ohm/km
• Structural Return Loss
  • 5-30 MHz: > 23 dB
  • 30-470 MHz: > 23 dB
  • 470-1000 MHz: > 20 dB
  • 1000-2000 MHz: > 18 dB
  • 2000-3000 MHz: > 18 dB
• Nominal attenuation (dB/100m)
  • 5 MHz: 1,10
  • 50 MHz: 3,00
  • 100 MHz: 4,10
  • 400 MHz: 8,00
  • 800 MHz: 11,50
  • 1000 MHz: 12,90
  • 1500 MHz: 16,10
  • 1750 MHz: 17,50
  • 2150 MHz: 20,00
  • 2400 MHz: 21,00
  • 3000 MHz: 24,00

Mechanical characteristics

• Minimum Bending Radius
  • For one bend: 50 mm
  • For repeated bending: 100 mm
• Maximum Tensile Force: 300 N

Other data

• Standards: ΕΝ 50117
