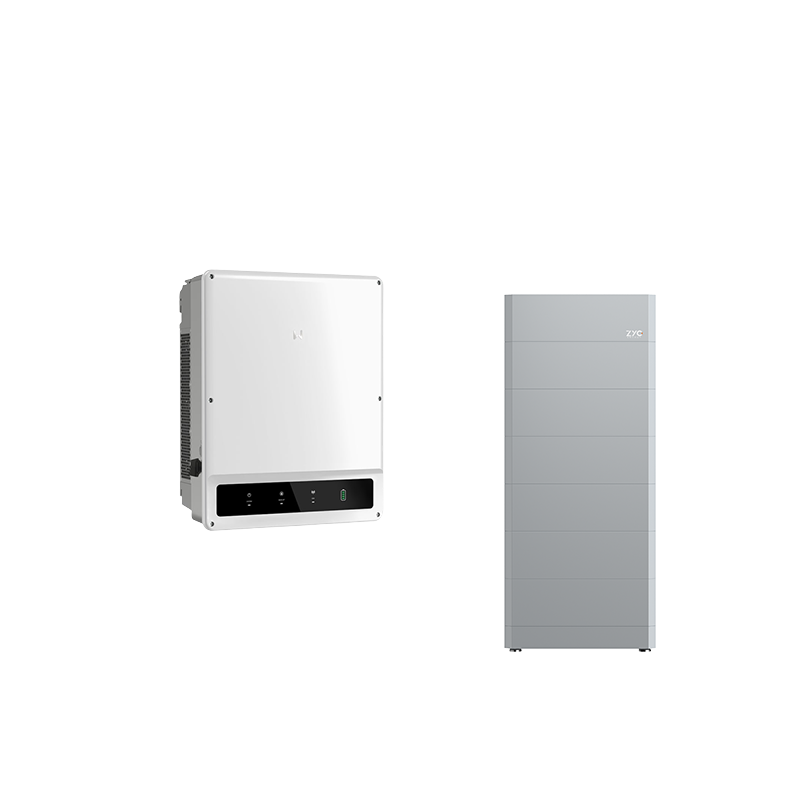

ZYC SIMPO HV 19.2 + GW20K-ET

The middle performance classes of the Goodwe et Hybrid series from 15 to 29.9 kW are in the best company with the ZYC SIMPO high-voltage storage. The cable and screwless stacking concept can be used up to 28.8 kWh capacity per unit peravel. And here too is not fault-Up to 8 heats with total 230.4 kWh can be connected in parallel. The field of application is thus from residential to small commercial systems and covers ideal with the Goodwe hybrid inverters. These shine with 17 amps per string connection, 38 amps per mpp tracker and up to 2 battery inputs each with 50 amp charging current. For this a powerful backup UPS function <10ms. Even peak shaving is given by Goodwe as an option option.

Produktvorteile:

? Emergency stream with UPS function <10ms

? 38 A input current per mpt

? Cable and screwless construction

? Up to 8 heats cascadable (230.8 kWh)

? Certified battery safety according to VDE 2510-50

Product features System:

? AC power: 20 kW

? Number of mppt: 2

? AC connection: 3-phase

? Films memory: 1

? Communication: WiFi, RS485

? Protection class: IP66

? Celebration: active

? Weight: 48.0 kg

? Energy meter included in inverters

Product features Memory:

? Battery capacity (usable): 19.2 kWh

? Time window extension: unlimited

? Cell chemistry: LFP

? Interfaces: CAN 2.0A, Modbus RS485

? System structure: 2-9 memory modules

? Cascadable: up to 8 heat parallel

? Rated voltage: 384 V

? Protection class: IP65

? Dimensions: 1430 x 610 x 240 mm (H x W x D)

? Weight: BMS + pedestal: 20.0 kg, 6 x memory per 36.0 kg

? Warranty: 10 years

Conclusion:

The components meet on obvious-Neat performance with proper capacity.

Delivery:

? 1 x GW20K-ET Hybrid-WR, incl. Meter (Article 0159119)

? 1 x ZYC SIMPO HV Battery Management System (Article 0157730)

? 6 x ZYC SIMPO HV memory module (Article 0157729)
