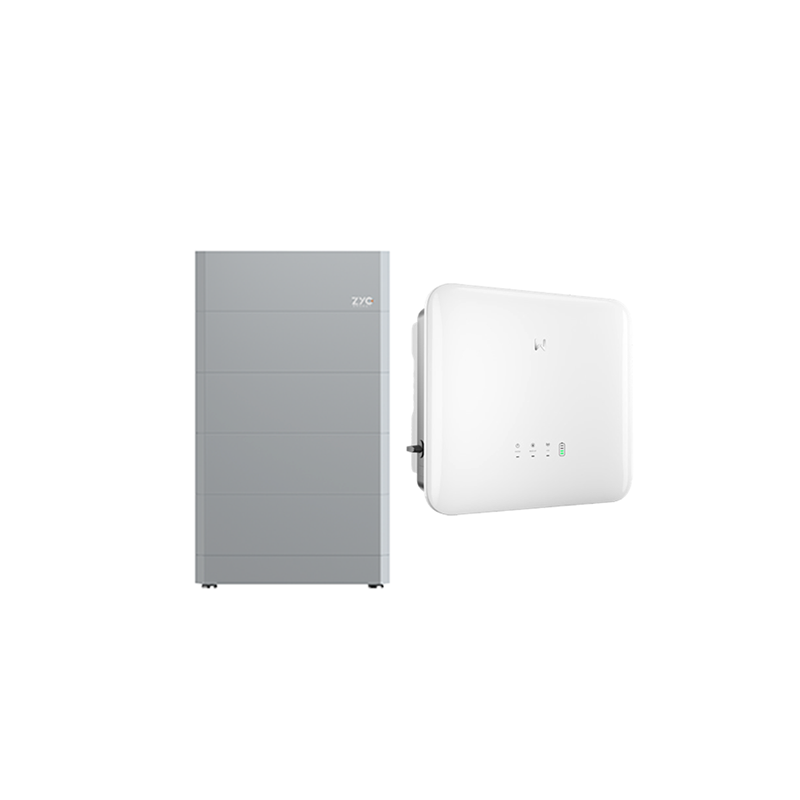

ZYC SIMPO HV-12.8 + GW15K-ET-20 G2

The 2nd generation of the Goodwe ET-20 Hybrid series ranges from 6 to 15 kW and is ideal for many residential applications. The successor to the previous ET + series received supplements and improvements in many places. With the well-known 16 amps input current per MPP Tracker can be connected to all current module series. With integrated smart meter incl. 3 CTS and communication dongle as well as AC + DC-Surgerine protection and AFCI arc detection, the equipment is complete. The proven backup connector provides uninterrupted selected circuits. At ZYC SIMPO high-voltage storage, the cable and screwless stacking concept up to 28.8 kWh usable capacitance per unit can be used. And here too is not fault-Up to 8 heats with total 230.4 kWh can be connected in parallel. The field of application is thus from residential to small commercial systems.

Produktvorteile:

? Emergency stream with UPS function

? 16 A input current per mpt

? 3 x CTS + WiFi-LAN dongle with Cyber Security included

? Cable and screwless construction

? Up to 8 heats cascadable (230.8 kWh)

Product features System:

? AC nominal power: 15.0 kW

? Info times: 3

? AC mains voltage: 400 V

? Number of Mpp Tracker: 3

? Max. Input voltage DC: 1000 V

? AFCI arc recognition: Yes-Version 3.0

? DC - Surveillance protection: Type 2

? AC- Overlay protection: Type 2

? Storage Type: Tall Voltage

? Replacement current capable: Yes, about EPS connection

? Interfaces: RS485, CAN, WiFi, LAN

? Protection class: IP66

? Celebration: passive

? Dimensions: 460 x 496 x 221 mm (HXBXT)

? Weight: 25.0 kg

Product features Memory:

? Battery capacity (usable): 12.8 kWh

? Time window extension: unlimited

? Cell chemistry: LFP

? Interfaces: CAN 2.0A, Modbus RS485

? System structure: 2-9 memory modules

? Cascadable: up to 8 heat parallel

? Rated voltage: 256 V

? Protection class: IP65

? Dimensions: 1050 x 450 x 296 mm (HxWxD)

? Weight: BMS + pedestal: 30.0 kg, 4 x memory per 36.0 kg

? Warranty: 10 years

Conclusion:

The components meet on obvious-Neat performance with proper capacity.

Delivery:

? 1 x Goodwe GW15K-ET-20 G2 Hybrid-WR (Article 0160692)

? 1 x ZYC SIMPO HV Battery Management System (Article 0157730)

? 4 x ZYC SIMPO HV memory module (Article 0157729)
