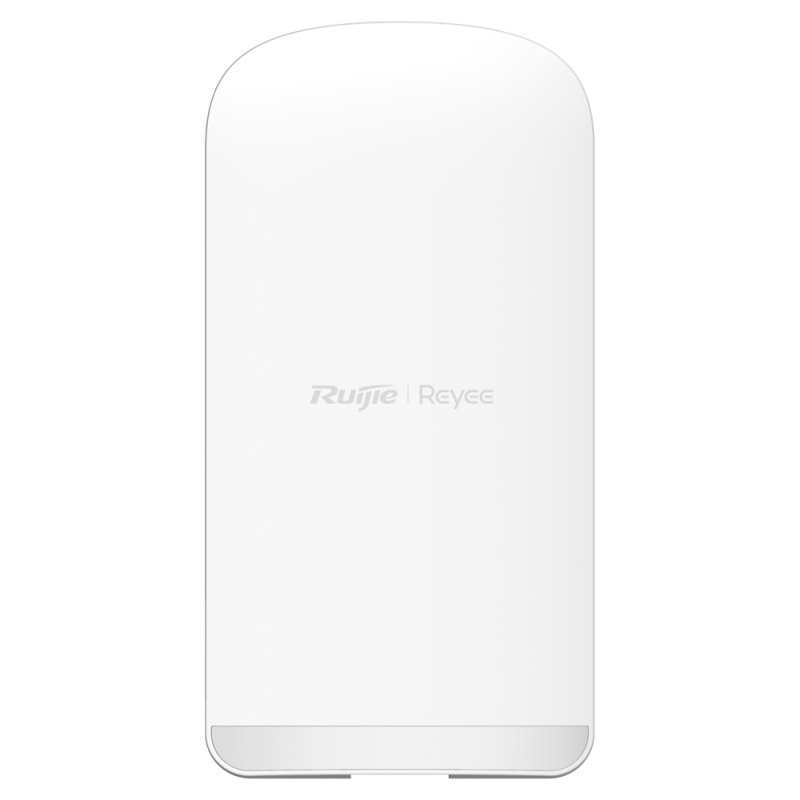

RG-EST330F-P

The RG-EST330F-P is a high-performance wireless bridge for PTP and PTMP links in the 5 GHz band, designed especially for outdoor environments where a robust, cost-effective and easy-to-deploy solution is required. It is ideal for applications such as video surveillance, building-to-building links and remote network connectivity.

Among its main features are:

Wireless speeds of up to 867 Mbps at 5 GHz and 150 Mbps at 2.4 GHz, thanks to its support for Wi-Fi 5 (802.11ac), and use of technologies such as 2x2 MIMO and 256-QAM modulation.

Effective coverage of up to 3 km, with performance capable of transmitting multiple IP cameras depending on resolution.

Coverage angle of 30° both horizontally and vertically, with an integrated 13 dBi antenna that optimizes link direction for improved signal and stability.

Two integrated PoE Out (802.3af/at) ports, which allow other devices, such as IP cameras, to be powered directly from the same network point, reducing additional cabling and installation costs.

Fast, one-touch pairing and tools such as antenna alignment, spectrum scanning and AI Heatmap, which facilitate accurate and efficient deployment.

Compatible with Ruijie's SON (Self-Organizing Network) technology, for automatic integration with other Reyee devices and centralized management from the cloud.

Three feeding options: Passive PoE, PoE 802.3af/at and direct DC supply, for flexible installation in various scenarios.

Compact, dust- and water-resistant design (IP55), with low power consumption and ESD tolerance up to 15 kV, ideal for outdoor operation in demanding environmental conditions.

The RG-EST330F-P is delivered as a single unit, intended to be used in conjunction with another compatible bridge as part of a point-to-point link or as a CPE in multipoint configurations. It is a cost-effective and versatile option for short and medium range wireless deployments with PoE power requirements for remote devices.
