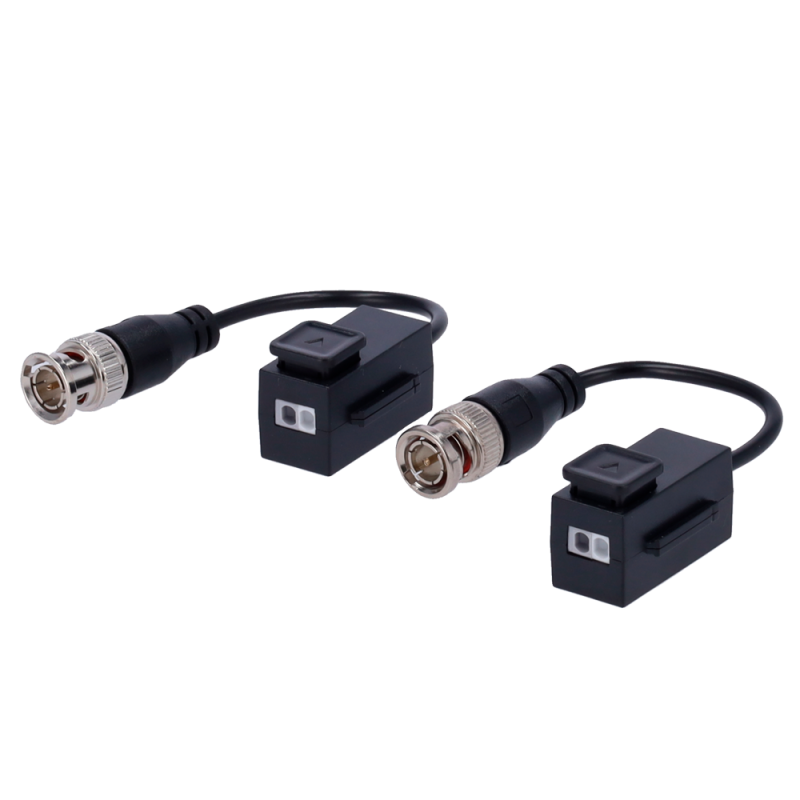

BA617P-HAC-B

Passive twisted pair video transceiver from Safire, 2 units for transmission and reception, specific for high definition analog (HD).

Optimized for the transmission of the video signal from 1 HDTVI, HDCVI, AHD or CVBS camera via twisted pair. It has male BNC connector and cable insertion terminal with Splicing Button, two-pin connector.

The maximum length between the end that connects to the camera and the end that connects to the video output depends on the signal resolution and the high definition technology used. In the specifications tab you can consult the distance values depending on the resolution and technology.

• Safire
• Balun (transceiver)
• Optimized for HD video: HDTVI / HDCVI / AHD
• 1 channel
• Passive
• BNC/UTP 2 pins
• Video
• Maximum TVI range: 250 m
• Maximum range CVI: 450 m
• Maximum AHD range: 350 m
• Resolution 4K, 4Mpx, 3Mpx, 1080p, 720p [%VAR%]
• 2 units (transmitter and receiver)
