BA612P-HAC

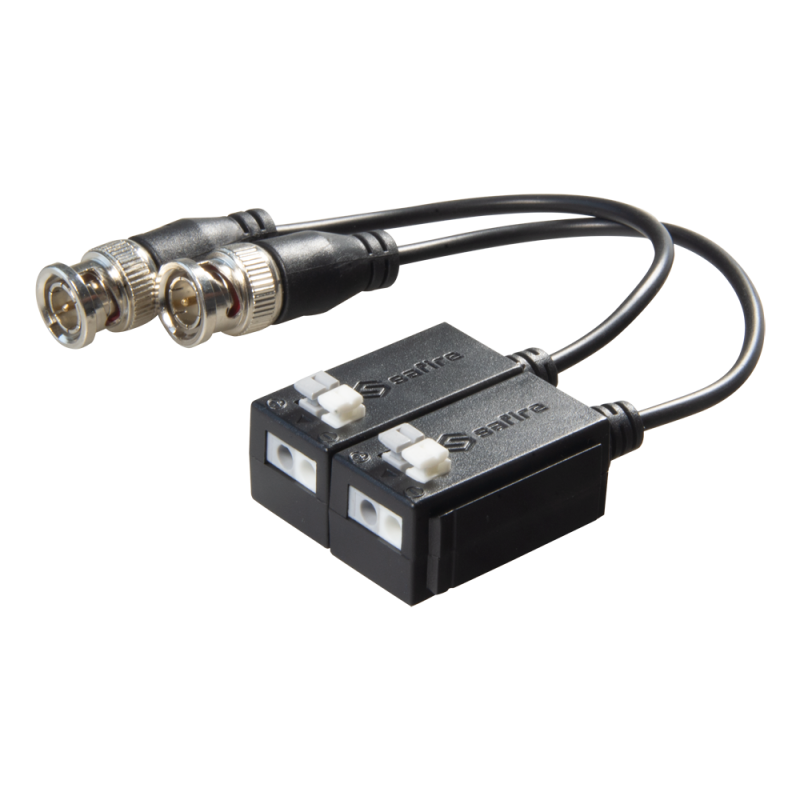

Passive twisted pair video transceiver from Safire, 2 units for transmission and reception, specific for high definition analog (HD).

Optimized for the transmission of video signal of 1 high definition analog camera HDTVI, HDCVI or AHD by twisted pair. It has BNC male connector and cable insertion terminal by pressure, two-pin connector.

The maximum length between the end that connects to the camera and the end that connects to the video output depends on the signal resolution and the high definition technology used:

• HDTVI 720p - 250 m
• HDTVI 1080p - 250 m
• HDTVI 4Mp (2560*1440) - 150 m
• HDCVI 720p - 400 m
• HDCVI 1080p - 250 m
• HDCVI 4Mp (2560*1440) - 150 m
• AHD 720p - 350 m
• AHD 1080p - 200 m
