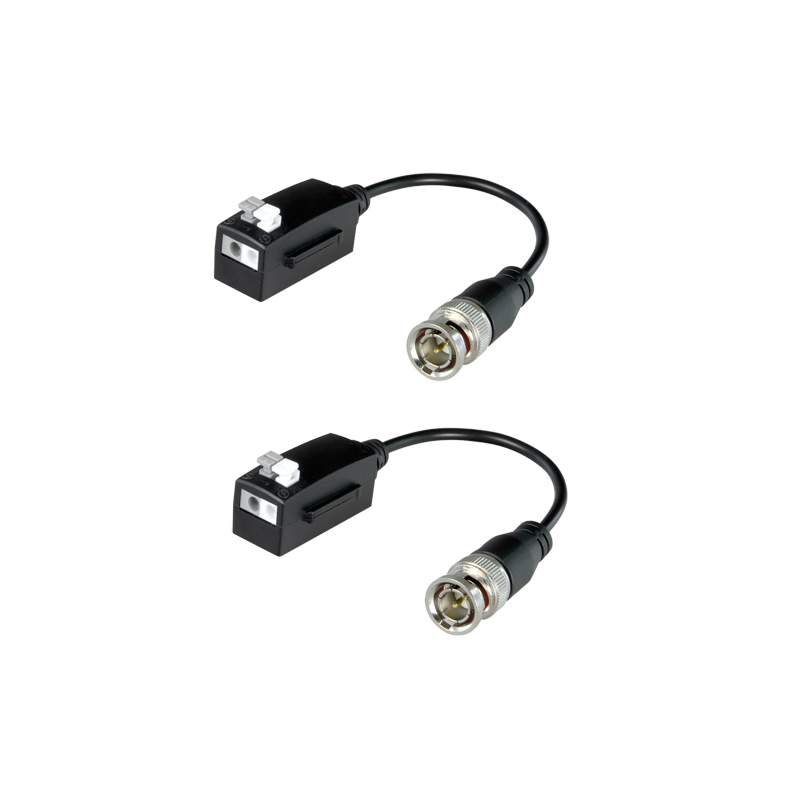

BA612P-HAC-B

Passive video transceiver over twisted pair, 2 units for transmission and reception, specific for analogue high definition (HD).

Optimized for video signal transmission of 1 High definition HDTVI analog camera. It has BNC male connector and cable insertion terminal by pressure, two-pin connector.

The maximum length between the end that connects to the camera and the end that connects to the video output is :

• HDTVI 720p - 200 m
• HDTVI 1080p - 200 m
• HDCVI 720p - 400 m
• HDCVI 1080p - 200 m
• AHD 720p - 300 m
• AHD 1080p - 200 m
• HDTVI 4 MP 200 m
• HDCVI 4 MP 200 m
• HDTVI 4K 200 m
• HDCVI 4K 200 m
