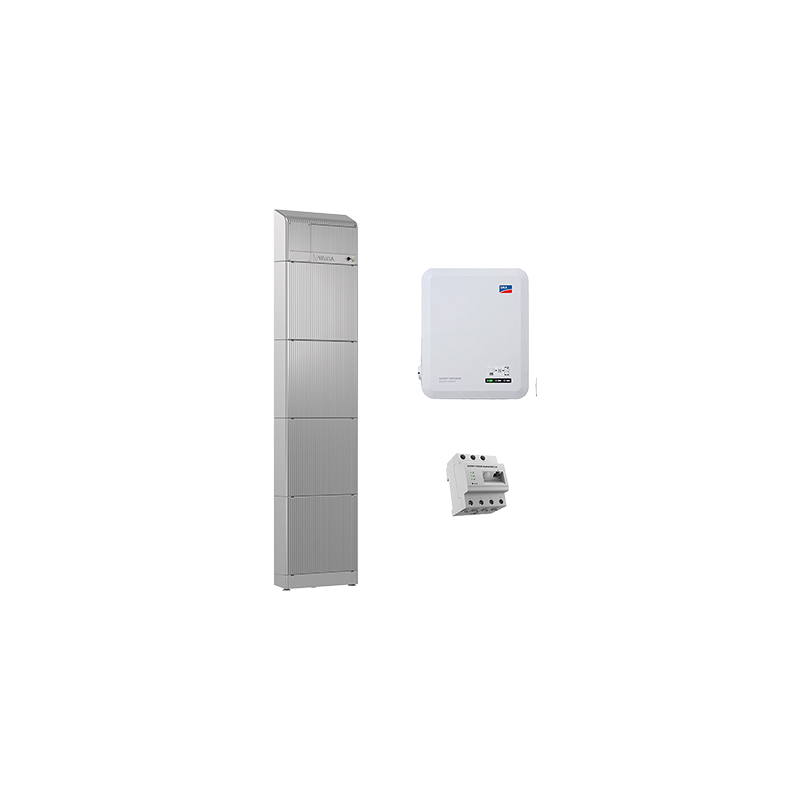

VARTA.wall 20 + Sunny Tripower SE 10.0

This storage package combines the 3-phase Smart Energy hybrid inverters from SMA with the VARTA.wall high-voltage storage system. The hybrids, which are available in 4 power classes, boast a full range of features from overvoltage protection to interfaces. Experience has shown that the visualization in the SMA Sunny Portal is at the highest level. The VARTA.wall is probably the flattest storage system on the market. In a stacked design with up to 4 modules on top of each other and only 100 mm depth, it fits behind almost any door.

Product advantages:

? Well-known and proven manufacturer

? AC + DC overvoltage protection type 2 integrated

? Ultra-flat and flexible storage design

? Scalable capacity up to 20.0 kWh

Product features System:

? AC power: 10.0 kW

? Number of MPPT: 2

? Input voltage: 280 - 800 V DC

? AC connection: 3-phase

? Overvoltage protection AC / DC: type 2 each

? Topology: transformerless

? Communication: WLAN, Ethernet, CAN

? Interfaces: 5 x DI (FRE), 1 x DO

? Protection class: IP65

? Cooling: passive

? Weight: 30.0 kg

? Dimensions: 500 x 598 x 173 mm (W x H x D)

Product features Storage:

? Battery capacity (usable): 20.0 kWh

? Storage type: High-voltage

? Nominal voltage: 403.2 V

? Extension time frame: 18 months

? System structure: 2 to 4 battery modules + BMS

? Cell chemistry: NCA

? Communication: CAN, RS485, Ethernet, WLAN

? Cooling: passive

? Protection class: IP55

? Dimensions: 2197 x 605 x 100 mm (H x W x D)

? Weight: BMS approx. 15.0 kg, storage 4 x 37.0 kg

? Warranty: 10 years

Conclusion:

Proven top technology from SMA and Varta come together. A set you can't go wrong with.

Scope of delivery:

? 1 x SMA Sunny Tripower SE 10.0 (item 0150370)

? 1 x SMA Home Manager 2.0 (item 0126650)

? 1 x Varta.wall BMS (item 0154888)

? 4 x Varta.wall storage module (item 0154887)
