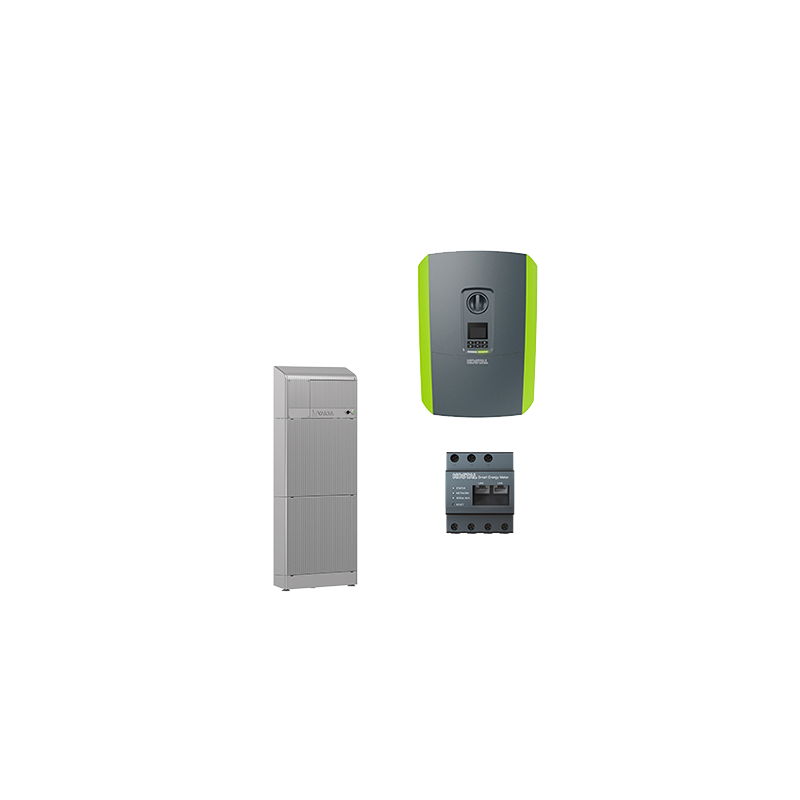

VARTA.wall 10 + Plenticore Plus 5.5 G2

This station wagon brings momentum into the booth. The proven Kostal Plenticore Plus G2 Hybride and the Ultra Flat Varta.Wall high-voltage storage. The Kostal hybrid of the G2 series shine with practical full equipment. The Varta.Wall is with only 100 mm construction depth of probably flatest memory on the market. In stacked construction with up to 4 modules-Over each other and 20 kWh usable capacity, he fits behind almost every tee. Lots of potential for this fresh storage couple.

Produktvorteile:

? Powerful storage package

? Simple network connection with each other as a daisy chain

? Certified battery safety according to VDE 2510-50

Product features System:

? AC Power: 5.5 kW

? Number of mppt: 2 + 1 (PV / BAT)

? DC input current: 13 a per mpt

? AC connection: 3-phase

? Communication: WiFi, 2 x LAN, RS485, 4 x Dig-in (FRE), 4 x Dig-Out

? Protection class: IP65

? Celebration: active

? Weight: 19.6 kg

Product features Memory:

? Battery capacity (usable): 10.0 kWh

? Storage Type: Tall Voltage

? Rated voltage: 201.6 V

? Time window extension: 18 months

? System structure: 2 to 4 battery modules + BMS

? Cell chemistry: NCA

? Communication: Can, RS485, Ethernet, WLAN

? Celebration: passive

? Protection class: IP55

? Dimensions: 1306 x 605 x 100 mm (H x W x D)

? Weight: BMS approx. 15.0 kg, memory 2 x 37.0 kg

? Warranty: 10 years

Activities using Plenticoins:

General (all G1 / G2 Plenticore Plus Series, MP Plus Series, Enector Wallbox):

Activation of the memory function: 1 Plenticoin

Activation of Wallbox Smart Features: 2 Plenticoins

Delivery:

? 1 x Kostal Plenticore Plus 5.5 G2 Hybrid-WR (Article 0152312)

? 1 x Kostal KSEM G2 Smart Meter (Article 0151118)

? 1 x Varta.Wall BMS (Article 0154888)

? 2 x Varta.Wall memory module (Article 0154887)
