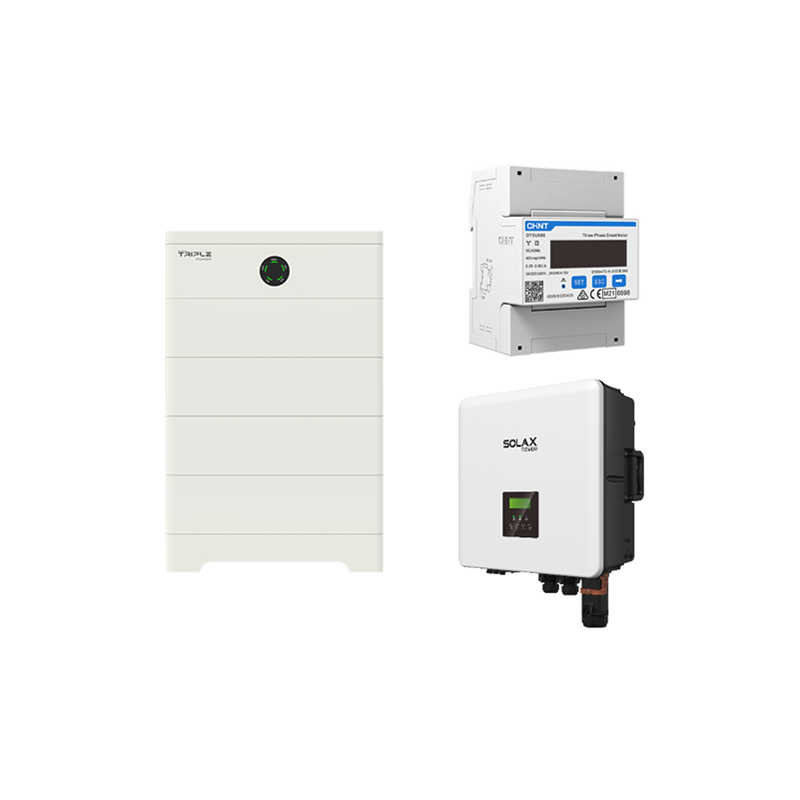

T-BAT-HS 10.0 + X3-Hybrid 15.0-P G4 PRO + Dongle

With the new PRO upgrade of the X3-Hybrid series from Solax, the devices are now fit for the future. This facelift brings up to three independent MPP trackers with 20A input current, two separate battery connections with a total of 50A, and a simplified layout of all COM ports. And this in power classes from 4 to 15 kW. Use as a true stand-alone system with generator connection is of course still approved. The same applies to the extensive range of proven accessories such as the X3-EPS Box, X3-EPS Parallel Box, EV Charger, etc. Combined with the HS storage series from Solax, there is a suitable set for every application.

Product advantages:

? Up to 3 independent MPPTs

? 20A input current per MPPT

? 2 separate battery ports

? Cascadable up to 13 battery modules

? Simplified COM ports with RJ45

System product features:

? AC power: 15.0 kW

? Feed-in phases: 3

? AC connection: 400 V

? Number of MPPTs: 3

? Max. DC input voltage: 1000 V

? Max. DC input current: 20A per MPPT

? DC surge protection: Type 2

? AC surge protection: Type 2

? Number of battery ports: 2

? Battery DC charging current: 25A each (using both ports), 30A (using one port), 50A (parallel operation)

? Communication: Wi-Fi, LAN

? Interfaces (RJ45 standard ports): RS485, BMS 1+2, Adapter Box G2, Wallbox, Datahub, DI/DO

? Protection class: IP66

? Cooling: active

? Dimensions: approx. 503 x 503 x 199 mm (W x H x D)

? Weight: 38.0 kg

? Wi-Fi/LAN dongle included

Storage product features:

? Battery capacity (usable): 9.2 kWh

? Storage type: High-voltage

? Nominal voltage: 204.8 V

? Expansion time window: unlimited

? Number of storage modules in one unit: 2 to 13 (Solax Series Box required for 9 or more units)

? Cell chemistry: LFP

? Communication: RS485 / CAN

? Protection class: IP65

? Dimensions: 773 x 510 x 365 mm (H x W x D)

? Weight: Battery 28.0 kg each, BMS + base 21.0 kg

Conclusion:

The Ready-for-the-future statement from Solax. Practical and well-thought-out features for the new PRO hybrids, plus the HS storage units with plenty of punch.

Scope of delivery:

? 1 x Solax X3-Hybrid 15.0-P G4 PRO (item 0158960)

? 1 x Solax Meter DTSU666-D (item 0128464)

? 1 x Solax MCS0800 BCU + Base (item 0155372)

? 4 x Solax HV-S 2.5 storage modules (item 0155103)
