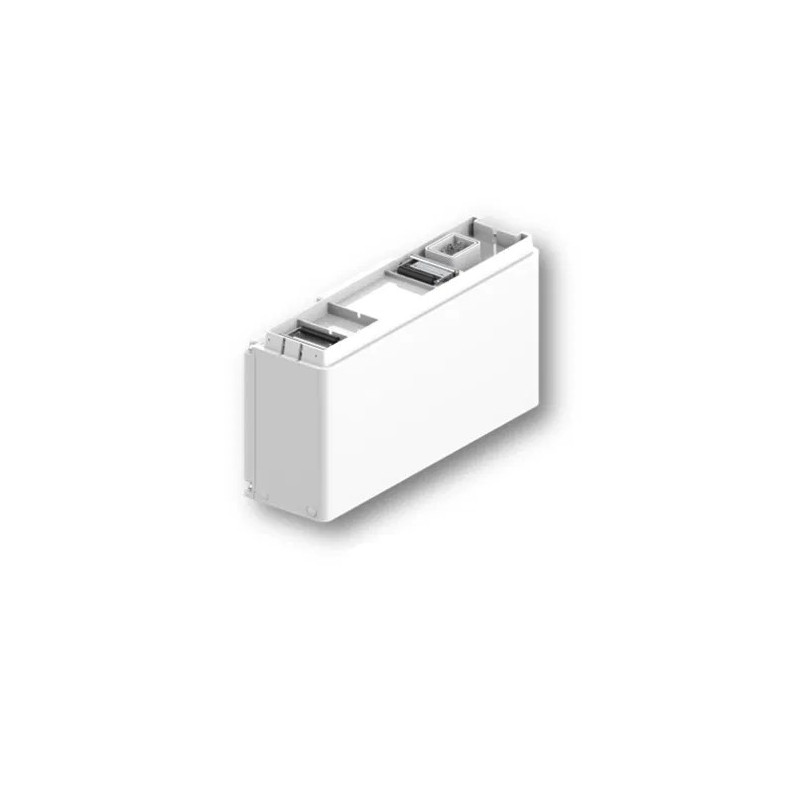

SunESS 5.0

As one of the largest cell manufacturers in the world, Sunwoda Energy is already involved in many well-known products. With the SunESS All-in-One system, it is now stepping into the limelight to get directly involved in the residential segment. The hybrid inverter forms a harmonious and visually appealing unit with the storage modules. The power classes from 8 to 15 kW are practically equipped with all the necessary interfaces. Input currents of up to 30 amps and integrated type 2 overvoltage protection create safe and flexible application options. The storage modules, each with 5 kWh, can be cascaded 8 times. The backup connection ensures safe operation of sensitive loads with a switchover time of <10 ms.

Product advantages:

• Compact all-in-one system

Product features:

• Battery capacity (usable): 5.0 kWh per unit

• Storage type: High-voltage

• Time window extension: unlimited

• Number of storage modules in a unit: 1 to 8*

• Cell chemistry: LFP

• Communication: CAN

• Cooling: passive

• Protection class: IP55

• Dimensions: 315 x 650 x 250 mm (HxWxD)

• Weight: 52.0 kg

*For a system configuration with >4 memory modules, an additional BMS is required. The memory modules must then be installed as a second tower.
