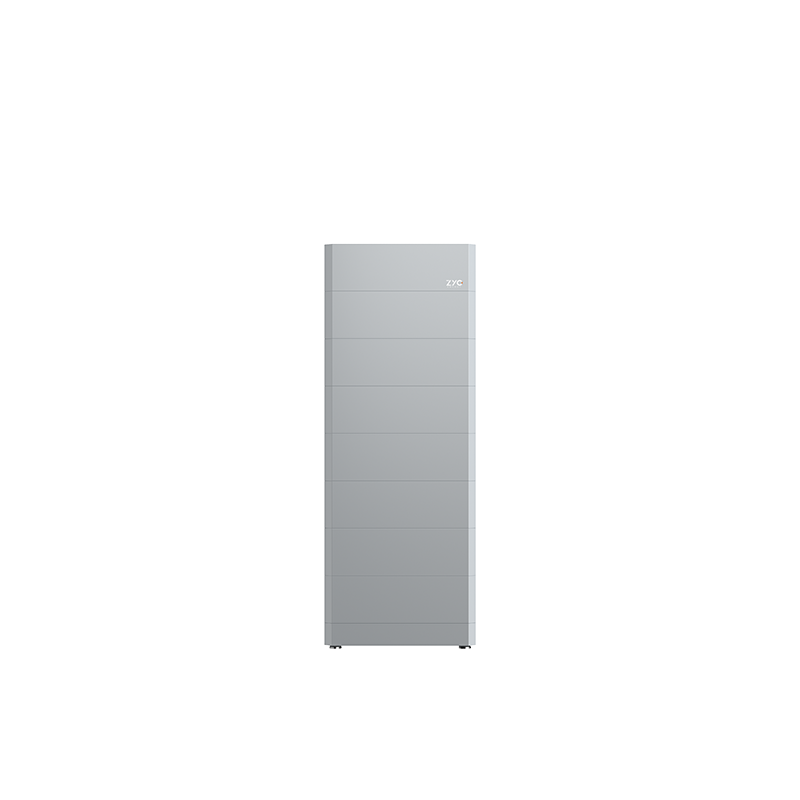

SIMPO HV 22.4

Wireless, screwless, carefree - this is how the installation of the new SIMPO HV memory is from ZYC. The proven stack concept possible capacity per unit is possible up to 28.8 kWh. And here, too, it is not up yet - up to 8 towers with total 230.4 kWh can be connected in parallel. The field of application is thus from residential to small commercial systems.

Produktvorteile:

• Efficient, compact stack construction

• Cable and screwless construction

• Up to 8 towers cascadable (230.8 kWh)

• Certified battery safety according to VDE 2510-50

Product features Memory:

• Battery capacity (usable): 22.4 kWh

• Time window extension: unlimited

• Cell chemistry: LFP

• Interfaces: CAN 2.0A, Modbus RS485

• System structure: 2 - 9 memory modules

• Cascadable: up to 8 towers parallel

• Rated voltage: 448 V

• Protection class: IP65

• Dimensions: 1620 x 610 x 240 mm (H x W x D)

• Weight: BMS + Socket: 20.0 kg, 7 x memory per 36.0 kg

• Warranty: 10 years

Delivery:

• 1 x ZYC SIMPO HV Battery Management System (Article 0157730)

• 7 x ZYC SIMPO HV memory module (Article 0157729)
