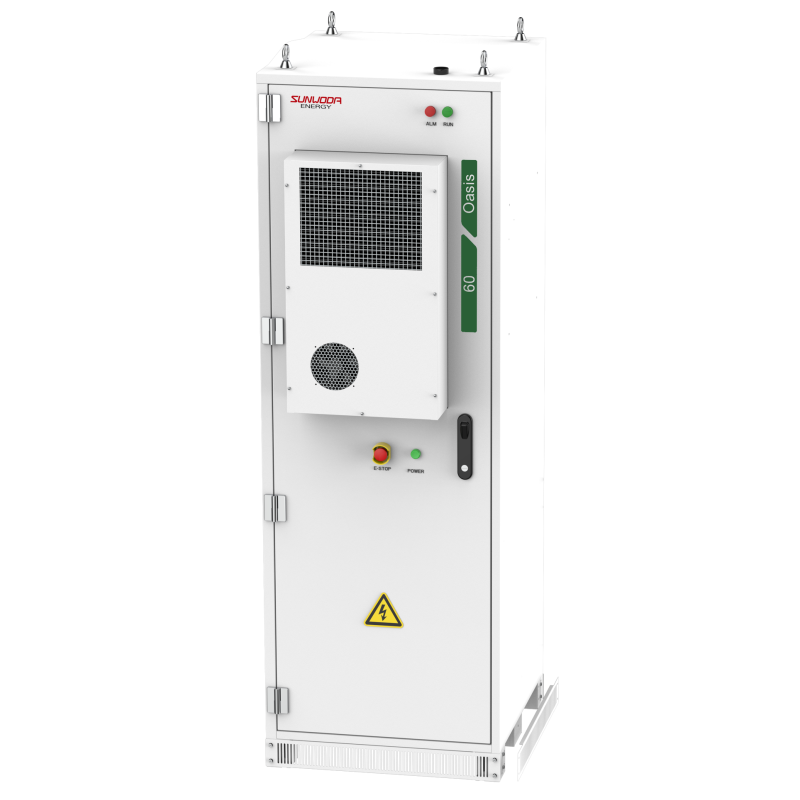

Oasis 60

As one of the largest cell manufacturers in the world, Sunwoda Energy is already involved in many well-known products. With the Oasis 60 Commercial Storage, it is now stepping into the limelight to get directly involved in the commercial segment. The compact cabinet with integrated air cooling can be set up flexibly. The storage inverter is installed at the side to save space. Up to 6 cabinets with a total usable capacity of 360 kWh can be connected in parallel. The connection is made without an external combiner box via integrated DC rails. Depending on the combined inverter manufacturer, a wide range of application scenarios such as peak shaving and off-grid are possible.

Product advantages:

? Flexible installation thanks to integrated air cooling

? Up to 6 units per inverter can be cascaded in parallel, no combiner box required

Product features:

? Capacity (usable): 60.0 kWh

? Storage type: High-voltage

? Extension time window: unlimited

? Number of storage modules in one unit: 12

? Cascadable units: up to 6 in parallel (via integrated DC rail)

? Cell chemistry: LFP

? Communication: CAN, RS485, Wifi

? Cooling: Air conditioning

? Protection class: IP55

? Cabinet dimensions: 890 x 715 x 2140 mm (L x W x H)

? Weight: Enclosure 207.0 kg, 12 x storage module 50.0 kg each
