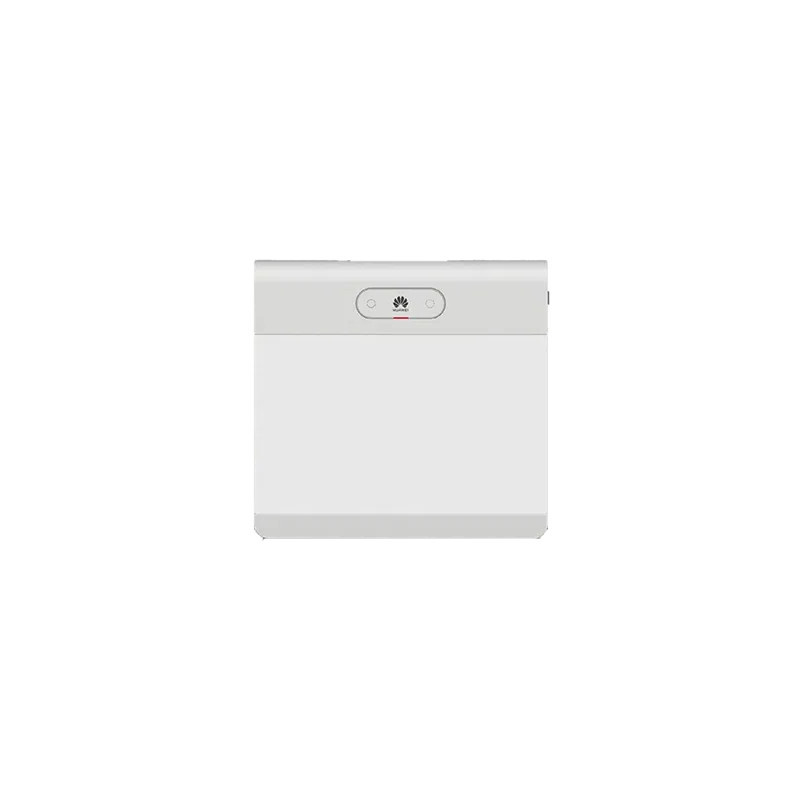

LUNA2000-5-E1

With the update of the 5-E1 storage modules, Huawei has taken the flexibility of its LUNA2000 series to a whole new level. The 5-E1 and 7-E1 elements can now be combined with each other. The result is a more precise adjustment of the storage capacity from 5.0 to 20.7 kWh, depending on customer requirements. Of course, all the usual advantages remain, such as the wireless stacking concept, cell balancing and unlimited expandability.

Product advantages:

•    Storage modules can be flexibly combined with each other

•    Unlimited expandability

•    Plug-in system replaces manual cabling of individual elements

•    Certified battery safety according to VDE 2510-50

Product features:

•    Battery capacity (usable): 5.0 kWh

•    Storage type: high voltage

•    Nominal voltage: 350 – 560 V

•    Time window expansion: unlimited

•    Number of storage modules in one unit: 1 to 3

•    Number of units in parallel: up to 4 towers*

•    Cell chemistry: LFP

•    Communication: CAN

•    Protection class: IP66

•    Dimensions: 360 x 590 x 255 mm (HxWxD)

•    Weight: 68.0 kg

*only in combination with MB0 inverters
