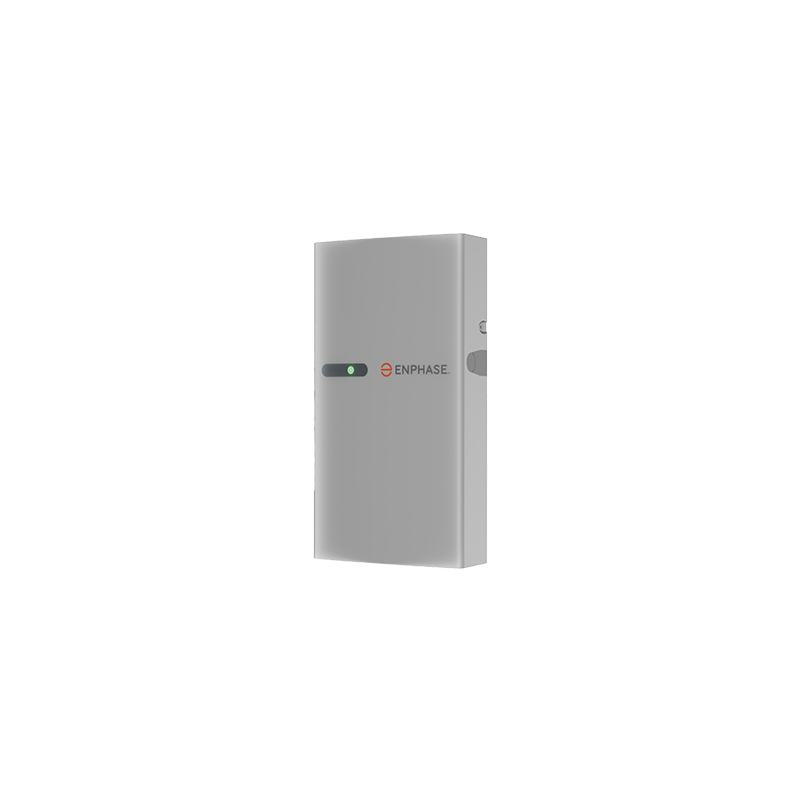

IQ Battery 5P-3P-INT, Flex Phase

The new Enphase IQ Battery-5P Flex Phase fits seamlessly into the proven system concept. In addition to the storage cells with a usable capacity of 5.0 kWh, the compact housing also accommodates the six IQ8 micro inverters for the grid connection. Depending on the version, these can be installed as single-phase or three-phase systems. Connection to the gateway of the PV system is straightforward with the Comms-Kit-02. Depending on the application, additional components such as the IQ Combiner or the IQ System Controller may be required.

Product advantages:

? Compact design

? Can be cascaded as required

Product features:

? Battery capacity (usable): 5.0 kWh

? AC connection: 400 V, 3-phase

? Charging power: 3.84 kVA

? Cell chemistry: LFP

? Communication: Wired connection via COMMS-Kit-02 (to be ordered separately, already included in IQ Combiner 2EU-3P)

? Protection class: IP55

? Cooling: passive

? Dimensions: 980 x 550 x 188 mm (HxWxD)

? Mounting: Wall (included) / floor (mounting kit available separately)

? Weight: 83.0 kg
