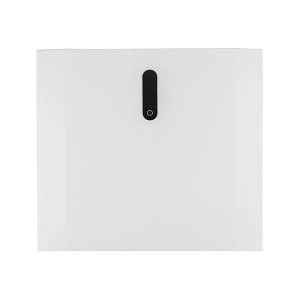

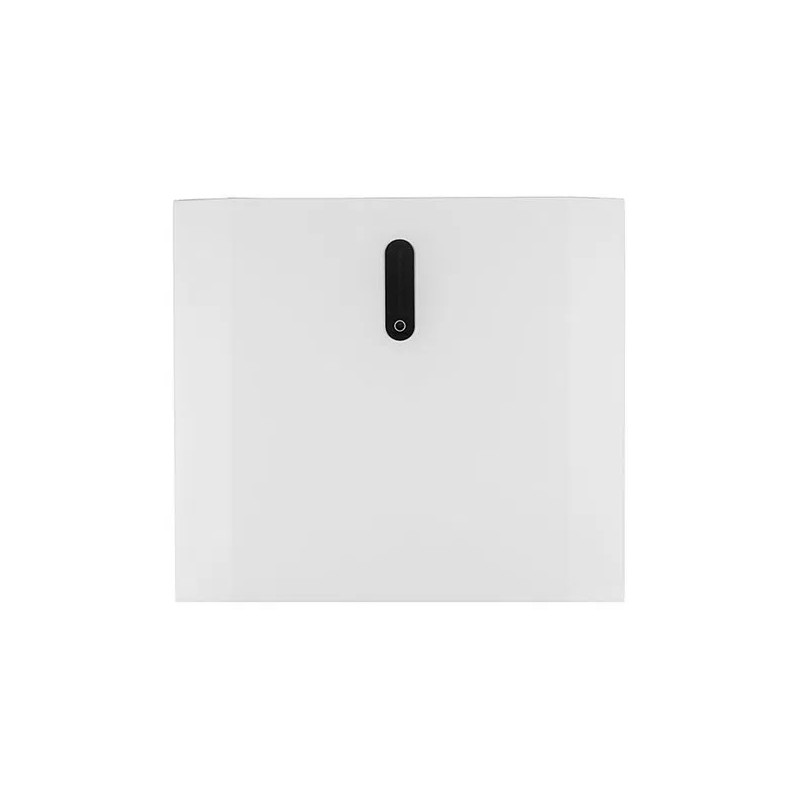

Home Battery LV 4.6

The power packs in the Home Battery LV series are compatible with the 3-phase RWS and RWB hybrids. Indefinitely expandable and reliable in any application. With up to 5 storage modules, up to 23.0 kWh of usable capacity can be created. Even if these legs and bases are only mentioned as an option, they provide the often desired safe distance from the ground. They also make it possible to level out any unevenness for a secure stand. A clear practical recommendation from us too.

Product advantages:

• All components from a single source

• Reliable compatibility thanks to uniform manufacturer

• Simple installation of the entire system via SetApp

Product features:

• Battery capacity (usable): 4.6 (4.85*) kWh

• Extension time window: unlimited

• Cascadable: up to 5 storage modules

• Cell chemistry: LFP

• Nominal voltage: 44.8 - 56.5 V

• Protection class: IP65

• Dimensions: 500 x 540 x 240 mm (H x W x D)

• Weight: 54.7 kg

• Cooling: passive

*For new systems from January 01, 2025, an increased usable capacity is released in combination with a SolarEdge SE*K-RWB48 inverter. Retroactive release before this date is not possible.
