FE-HV2600-V2
  • FE-HV2600-V2

FE-HV2600-V2

Fox ESS

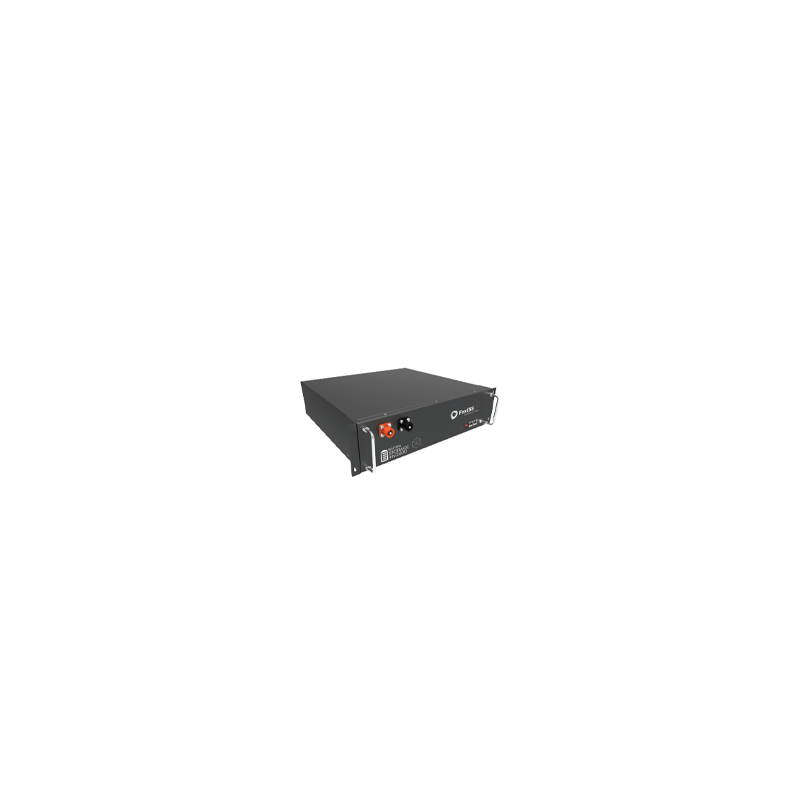

HV2600 2.6kWh High Voltage Battery V2

€606.55
VAT included
Quantity

Ask about the product on WhatsApp
Description

HV2600-V2 battery for use with Fox HV Inverter-Charger range.

This battery is a high voltage battery connected in series. A minimum of 2 and maximum of 4 is allowed for the AIO and a minimum of 2 and maximum of 7 is acceptable of the Fox Charger range. The batteries include their own cables.

Don't forget: You must register your install with Fox online to activate the 10 year product warranty, otherwise it's 5 years as standard. Please click here for registration page. Please check the warranty document for more information.


UK & EU Only - These batteries no longer include mounting brackets and these must be purchased separately; FE-HV-BRACK

UK & EU Only - FE-HV-BMS-V2 is compatible with both current and new HV2600 (FE-HV2600 & FE-HV2600-V2)

UK & EU Only - FE-HV2600-V2 is NOT compatible with current BMS and AIO Inverters part numbers: FE-HV-BMS, FE-AIO-H1-3.7-E, FE-AIO-H1-5.0-E, FE-AIO-H3-6.0-E, FE-AIO-H3-8.0-E, FE-AIO-H3-10.0-E

This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards. SegenSolar will not be held liable for any product malfunctions as a result of incorrectly installed systems.

Important

The FoxESS HV2600 battery is a High Voltage battery only compatible with FoxESS inverters.

Product Details
Fox ESS
Supplier Part No:
FE-HV2600-V2
Weight:
29 kg
Battery Type:
Lithium Ion
Nominal Energy:
2560 Wh
Depth of discharge:
9000.00 %
Voltage:
52 V
Continuous Discharge Rate (Normal Use):
2560 W
Maximum Discharge Rate (5 Minutes):
3000 W
Surge Discharge Rate (15 Seconds):
3600 W
Maximum Charge Rate (5 Minutes):
2560 W
