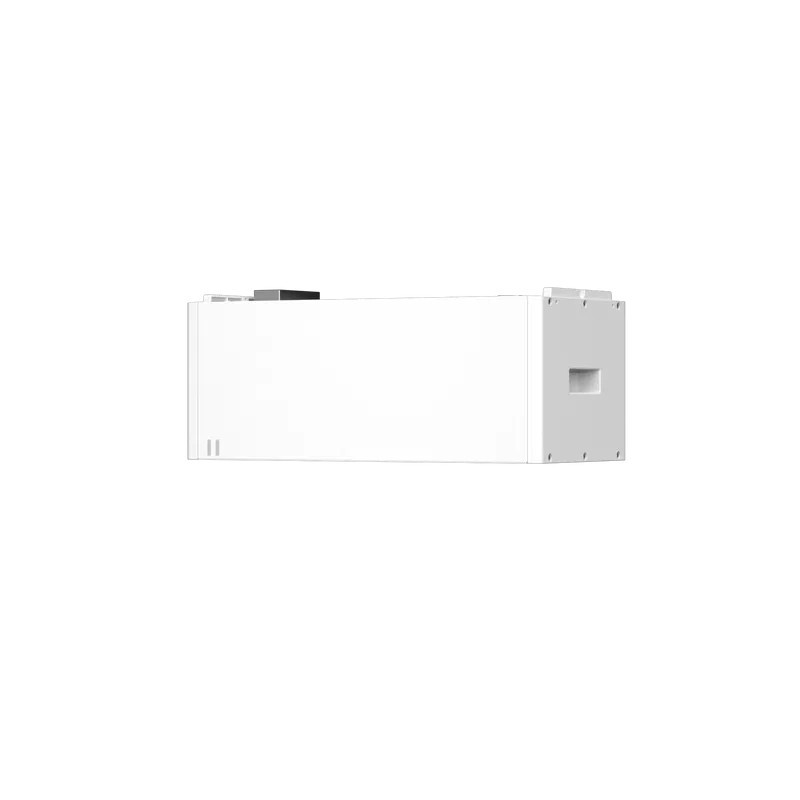

Battery-Box HVM+ 2,76 kWh

There is now also a ‘+’ for the latest generation of HVM high-voltage storage systems from BYD. In addition to the proven properties and key data, an improved BCU has been used in the new HVM+. This can be used flexibly for the storage modules of the HVB, HVS+ and HVM+ series. The new automatic SOC balancing optimiser eliminates the need to manually adjust the charge level during initial installation and expansion. The revised BCU connection management with connectors on the power and communication level saves further valuable time during installation. The configuration of the system is also made easier with a new installer app. At the same time, there is also an end customer app for convenient system monitoring.

Product benefits:

• Proven wireless stacking design

• Up to 8 storage modules per unit

• Can be retrofitted indefinitely

Product features Storage:

• Battery capacity (usable): 2.76 kWh

• Storage type: High-voltage

• Nominal voltage: 51.2 V

• Extension time window: unlimited

• Number of storage modules in a unit: 3 to 8

• Cell chemistry: LFP

• Communication: CAN, RS485

• Cooling: passive

• Protection class: IP55

• Dimensions: 240 x 610 x 282 mm (HxWxD)

• Weight: 41.4 kg
