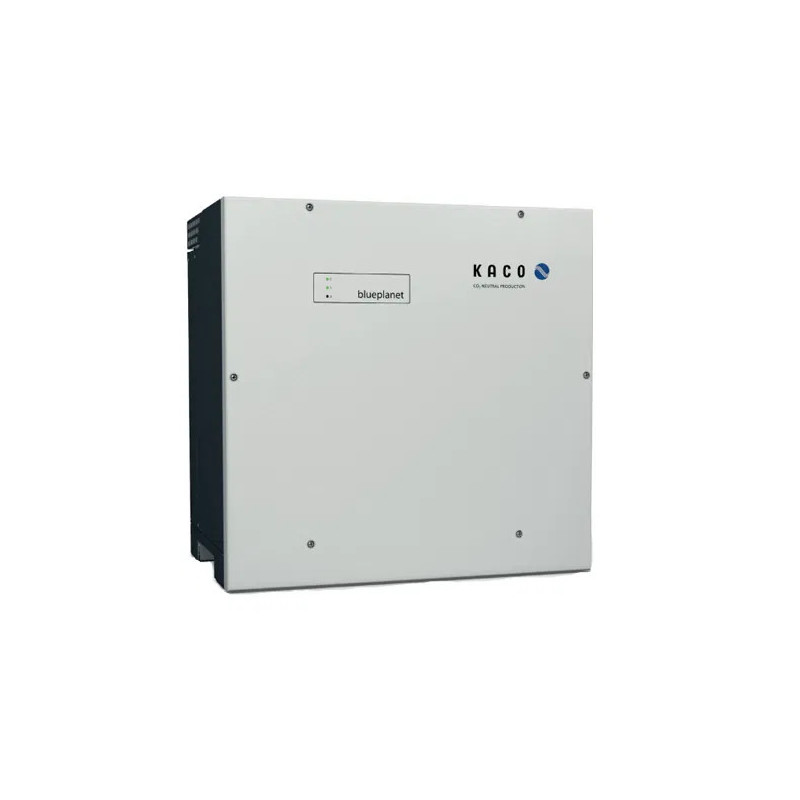

blueplanet gridsave 92.0 TL3-S Version L

With the Kaco blueplanet gridsave series, efficient storage connection is also possible to larger systems in the C&I segment. With a charging current of 145 amps and a DC system voltage of max. 1315 volts, high charging capacities of up to 137 kW can be realised.

Product features:

• AC power: 92.0 kW

• Feed-in phases: 3

• Mains voltage: 400 V

• Number of battery connections: 1

• DC voltage max.: 1315 V

• DC current max.: 145 A

• Communication: TCP / IP, Modbus

• Protection class: IP66

• Cooling: active

• Dimensions: 719 x 699 x 450 mm (H x W x D)

• Weight: 80.0 kg
