SOL-S6-GR1P-1.5K-M-EU
  • SOL-S6-GR1P-1.5K-M-EU

SOL-S6-GR1P-1.5K-M-EU

SOL-S6-GR1P-1.5K-M-EU
Solis

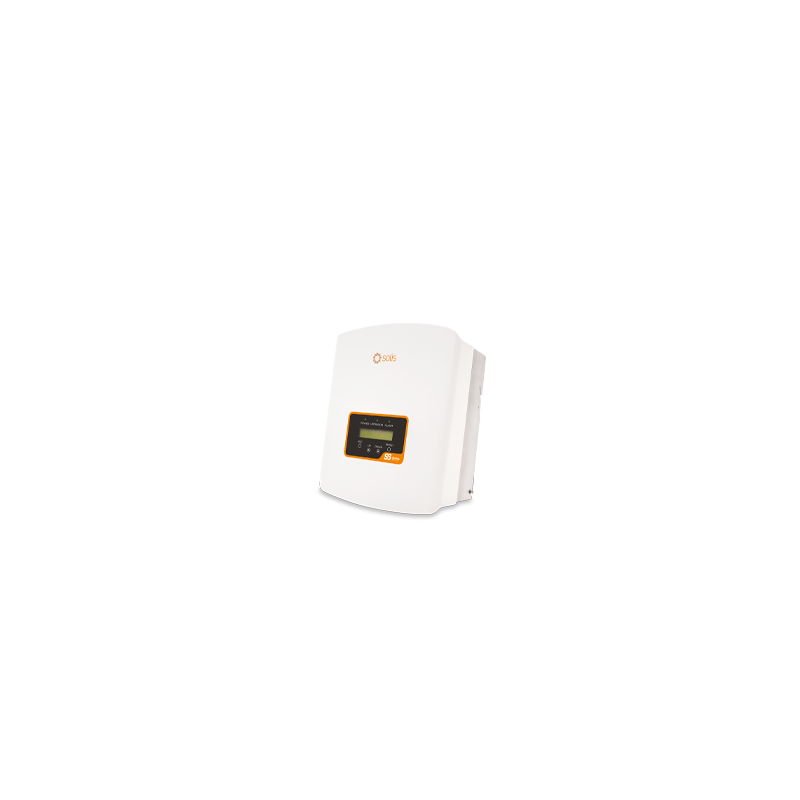

S6 Mini 1.5kW 1MPPT 1PH Inverter - with DC isolator
€259.56
VAT included
Quantity
Op voorraad bij leverancier (levertijd 5-10 werkdagen)
342 Items

Ask about the product on WhatsApp
Description

The All New Solis Mini 6S Series Grid-tie Inverter. Compact and lightweight design, for easy installation. Fanless, minimal noise, producing less than 20 dBA. Compatible with high-efficiency modules and bi-facial modules.

Product Features

  • Super high frequency switching technology with maximum efficiency of 96.6%
  • Max PV Power of 2.3kW
  • DRM (Demand Response Mode) integrated and backflow power control function for smart grid requirements.
  • Wide voltage range - Ultra low start-up voltage of 60V and max PV input voltage of 600V
  • Intergrated Export Power Manager (EPM)
  • Integrated AFCI (DC arc-fault circuit protection)
  • Integrated DC switch for emergency shut-down of PV power or safe PV maintenance
  •  (10-year standard warranty for the Netherlands, Belgium, France, Germany, Poland, Italy, Ireland)

Product Details
Solis
SOL-S6-GR1P-1.5K-M-EU
342 Items
Supplier Part No:
S6-GR1P1.5K-M
Weight:
7.7 kg
Rated Power:
1,500 W
Min PPT Voltage:
60 V
Max PPT Voltage:
500 V
DC Startup Voltage:
60 V
DC Shutdown Voltage:
50 V
Max Input Voltage:
600 V
Max DC Power:
2,300 W
Max AC Power (5 Minutes):
1,650 W
Surge AC Power (1 Second):
1,650 W
Max DC Current:
14 A
Max DC Inputs:
1
Has DC Fuses:
0
Connector:
MC4
Included Connectors:
1
Euro Efficiency:
95.4 %
Transformer:
none
MPPT Quantity :
1
Has Integrated DC Switch:
Yes
Warranty:
10 years
