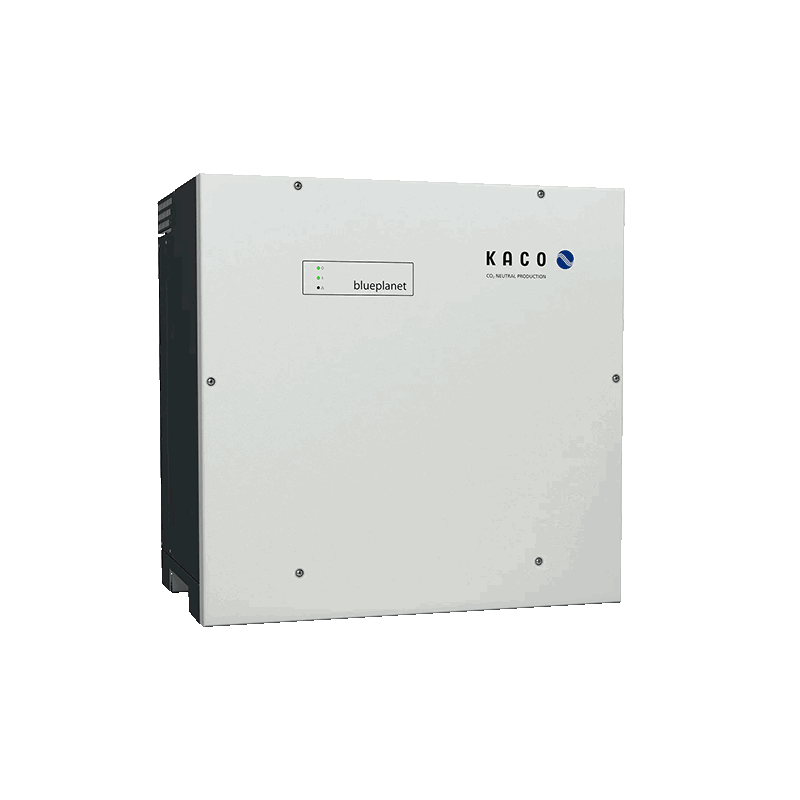

blueplanet 165 TL3, Version S

The blueplanet TL3 series from Kaco is designed for use in ground-mounted systems and large solar parks. All components and parts are suitable for extreme environmental conditions. The project inverter, optimised for efficiency and effectiveness, requires a separate DC combiner box.

Product features:

? AC output: 165 kW

? AC connection: 660 V, 3-phase

? DC system voltage: 1500 V

? Number of MPPT: 1

? DC connections: Cable lug up to 240 mm?

? Overvoltage protection: DC type 1+2

? Communication: RS485, Ethernet

? Protection class: IP66

? Cooling: active

? Dimensions: 719 x 699 x 460 mm (H x W x D)

? Weight: 78.2 kg
