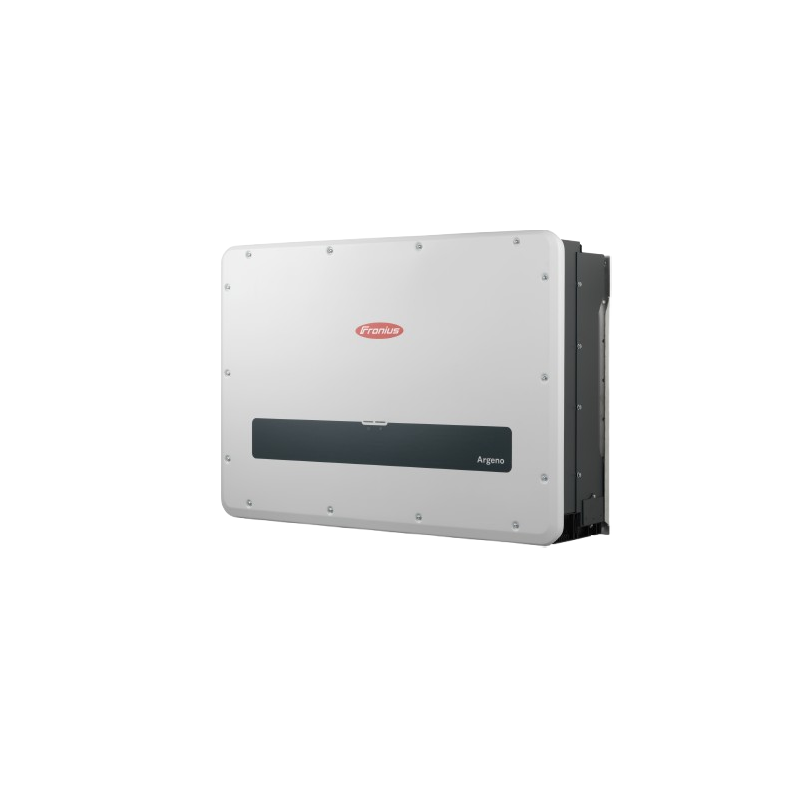

Argeno 125

The Argeno 125 from Fronius is the new player for the commercial segment. With 10 MPP trackers and 30 amps of input current each, it offers a high degree of flexibility. Maximum safety thanks to the integrated arc detection Arc Guard and overvoltage protection type 1+2 on AC and DC connections. Thanks to open interfaces, there are universal application options for energy management with Wattpilot, Ohmpilot & Co. The integrated data logger also has numerous connection options for external control signals or load management.

Product advantages:

? 30 A input current per MPPT / 20 A per string

? Integrated and interchangeable AC+DC overvoltage protection type 1+2

? Integrated data logger + web server

Product features:

? AC power: 125.0 kW

? AC connection: 400 V, 3-phase

? Number of MPPT: 10

? Connections per MPPT: 2

? DC input current: 30 A per MPPT / 20.0 A per string

? DC connector: Phoenix Contact SUNCLIX (counterparts included in the scope of delivery)

? Overvoltage protection: Type 1+2 on AC+DC with interchangeable elements

? Communication: 2 x Ethernet

? Interfaces: WSD (Wired Shutdown)

? Protection class: IP66

? Cooling: active

? Dimensions: 1070 x 755 x 330 mm (H x W x D)

? Weight: 90.0 kg
