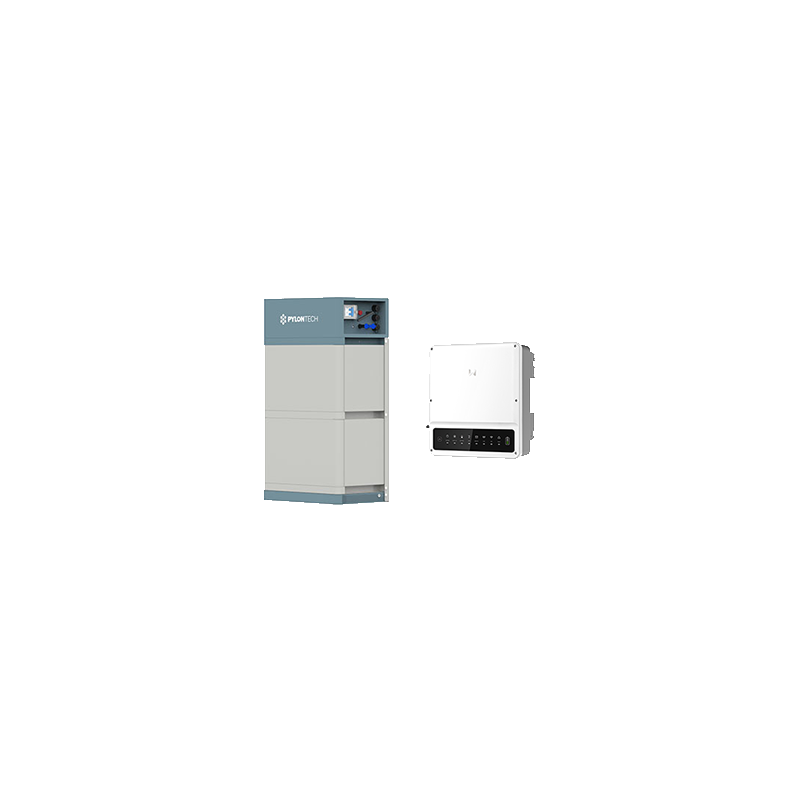

Pylontech Force-H2 6.7 + GW3600N-EH

In addition to a DC input current of 16 amps, the EH series also boasts a genuine, uninterruptible UPS function for the backup connection. This means that even sensitive consumers can be operated carefree in any mains situation. Combined with the Force-H2 high-voltage series from Pylontech, this is a powerful system for home use.

Product advantages:

? Emergency power with UPS function < 10ms

? 16 A input current per MPPT

? Energy meter included with inverter

Product features System:

? AC power: 3.6 kW

? Number of MPPT: 2

? DC overvoltage protection: Type 2

? AC connection: 230 V, 1-phase

? Communication: Wifi, Ethernet (optional), RS485, CAN

? Protection class: IP65

? Cooling: passive

? Dimensions: 354 x 433 x 147 mm (W x H x D)

? Weight: 17.0 kg

Product features Storage:

? Battery capacity (usable): 6.7 kWh

? Extension window: 2 years

? Cell chemistry: LFP

? Nominal voltage: 192 V

? Protection class: IP55

? Dimensions: 815 x 450 x 300 mm (H x W x D)

? Weight: BCU 21.0 kg, 2 x storage units 38.0 kg each

Conclusion:

Good manufacturer - good combination.

Scope of delivery:

? 1 x GW3600N-EH hybrid inverter, incl. meter (item 0152931)

? 1 x Pylontech Force-H2 Battery Management System (item 0152523)

? 2 x Pylontech Force-H2 storage module (item 0132232)
