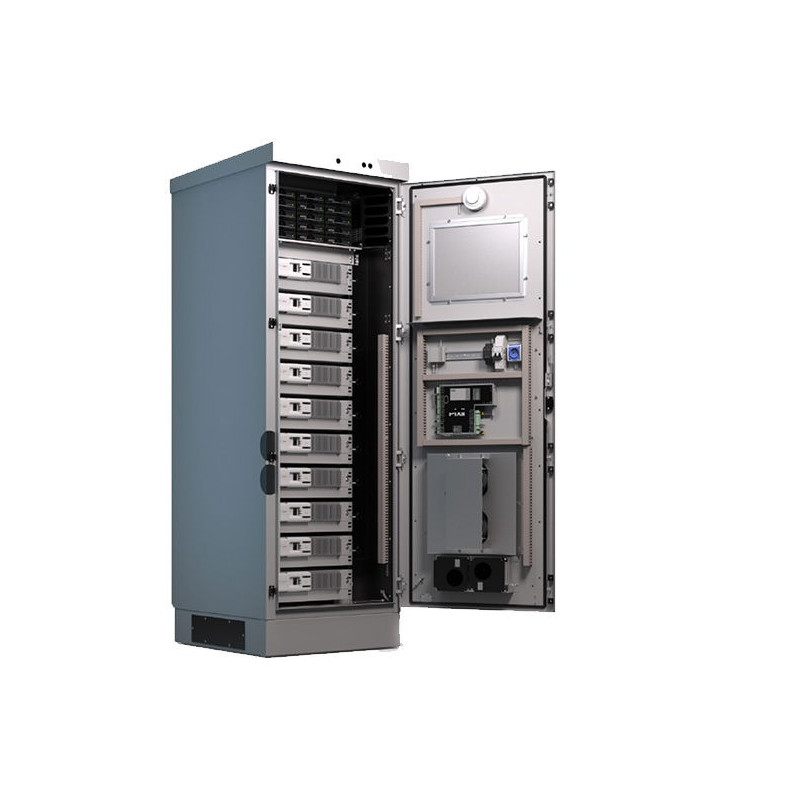

POWERSHAPER2 150 kW/150 kWh, Com. storage
Cell chemistry LFP 125 kWh usable, 150 kW WR
Description
For systems >5 units, please use the Pixii Master Gateway Kit (article 0155534). This prevents longer response times during internal communication. Systems up to 5 units work without problems with the Pixii Master Cabinet Kit / Switch.
Use the form in the download area to register for online installation support.
Required accessories:
? Energy Meter (article 0152662)
? 1 x Installation Online Support, Master Rack - 1st Cabinet (article 0156090)
? 2 x installation online support, multi-rack - 2nd to 10th cabinet (article 0156091)
Based on your project-specific key data and planned components, please consider the need for an external EMS to provide, for example, the required control interfaces. This may need to be added separately. We would be happy to assist you in selecting suitable providers.
The heart of our commercial storage system from Pixii from Norway is a small black box - the PixiiBox. 12-15 of these bidirectional inverters, each with 3.33 kW, form the Pixii PowerShaper2 commercial storage system with 8 - 10 battery slots. Depending on the desired cell chemistry, 50 kWh (LFP) or 103 kWh (NMC) are possible per rack. The PowerShaper2 can be cascaded up to the MWh range. Depending on the application, also in an air-conditioned version for outdoor use, in dusty or noise-sensitive environments. Of course also available fanless with IP20 for indoor applications.
Product advantages:
? Maximum flexibility through comprehensive scalability
? Safe and proven LFP cell chemistry
? Integrated web server
? Connection to higher-level energy management possible
? Integrated tie switch can be used for central NA protection in accordance with VDE AR-4105
? Free online commissioning support
? Compatible energy meter and transducer available as separate accessories
? Cascading: possible with entire racks, up to several MWh
Product features:
? Capacity (usable): 125 kWh
? Total charging power: 150 kW
? Charging cable per Pixiibox: 3.3 kW
? Charging rate: 1C
? Application: Peak shaving, self-consumption, PRL, backup (only master active, accessories required)
? Visualization: locally via web server, connection to higher-level management possible
? Cell chemistry: LFP (lithium iron phosphate)
? Installation location: Indoor / Outdoor
? Cooling: controlled fans with filter system
? Protection class: IP55
? Certification: VDE 4105
? Rack dimensions: 706 x 2106 x 932 mm (W x H x D)
? Total weight: 2100 kg (3x rack 220 kg, 45x Pixiibox 2 kg each, 30x battery unit 45 kg each)
? Product warranty: 5 years
Scope of delivery:
? 3 x Pixii Cabinet PowerShaper2 (article 0152752)
? 30 x Pixii SLB48-100-135-5 battery module (item 0154412)
? 45 x Pixii PixiiBox 48/3300 (item 0152753)
? 1 x Pixii Multi Cabinet Switch (Item 0152756)
Wichtige technische Daten
| Dangerous goods transportation category | 2 |
|---|---|
| Dangerous goods description | LITHIUM ION BATTERIES |
| Tunnel restriction code | (E) |
| Classification code | M4 |
| Dangerous goods class | 9 |
| Dangerous goods packaging type | 4G |
| UN No. | 3480 |
