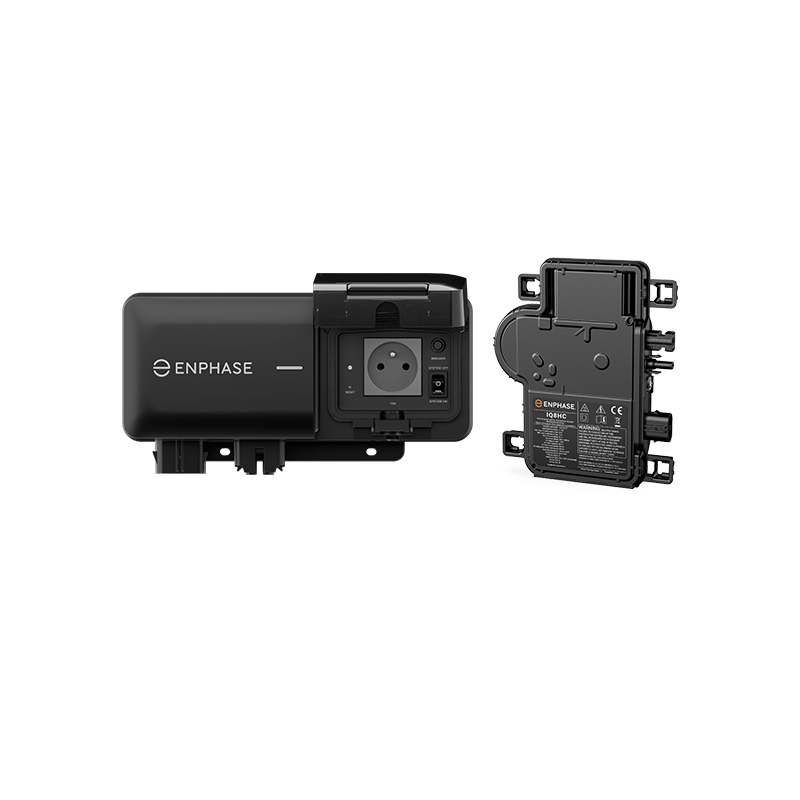

IQ Balcony Solar Kit Wifi (only BE)

Enphase goes Balcony - the IQ Balcony Solar Kit is probably the smallest PV power plant from Enphase. In addition to two IQ8 micro inverters and cabling, the kit also includes the IQ Balcony Gateway. This control centre regulates the maximum feed-in power of 800 W into the power grid as well as monitoring in the Enphase Portal. Excess PV energy can also be used directly via the integrated earthed socket - even in the event of a grid failure. By adding further IQ8HC micro inverters, up to 2.76 kW is possible via this connection.

Product advantages:

? Plug-and-play solution

? Utilisation of PV surplus also possible thanks to integrated earthed socket

? Mini backup system with PV energy

? Included in the kit: IQ Balcony Gateway, 2 x IQ8HC Micro-WR, connection cable

IQ Gateway product features:

? Max. AC output power grid: 800 W

? Mains voltage: 230 V

? Feed-in phases: 1

? Max. AC rated current: 12.0 A

? Integrated AC connection: Schuko socket, type F

? Max. Output power auxiliary socket: 2760 W

? Max. Number of IQ8HC WR on the gateway: 7

? Communication: Wifi

? Protection class: IP 65

? Dimensions: 273 x 116 x 93 mm (H x W x D)

? Weight: 1.14 kg

? Warranty: 5 years

Product features IQ8HC Micro-WR:

? AC output power: 384 VA

? Mains voltage: 230 V

? Feed-in phases: 1

? Max. DC rated current: 14.0 A

? Connector plug: Stubli MC4

? Protection class: IP 67

? Cooling: passive

? Warranty: 25 years
