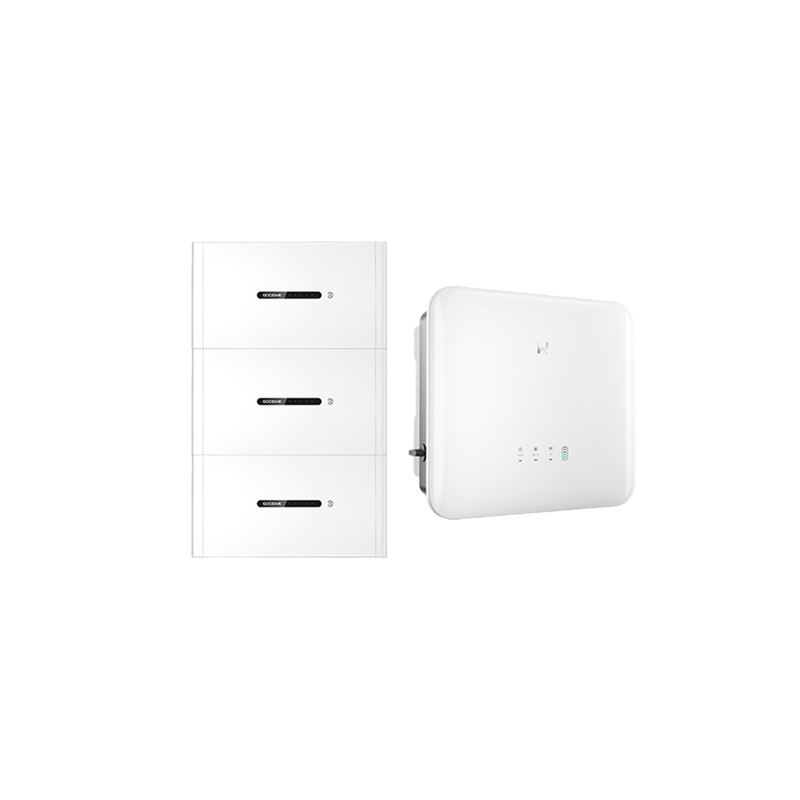

Lynx D15.0-10 + GW8000-ET-20
  • Lynx D15.0-10 + GW8000-ET-20

Lynx D15.0-10 + GW8000-ET-20

0162529
Lynx D15.0-10 + GW8000-ET-20
€6,900.44
VAT included
Quantity
75 Items

Ask about the product on WhatsApp
Description

Product information "Lynx D15.0-10 + GW8000-ET-20"

The included communication dongle is the requirements for Cyber Security.

This set contains the components for floor mounting of the memory. If necessary, this is to be replaced in the same level of pose against the wall-mount kit.

A maximum of 4 memory modules are chewed together? > 4 modules the structure is required in two separate paces.
The 2nd generation of the Goodwe ET-20 Hybrid series ranges from 6 to 15 kW and is ideal for many residential applications. The successor to the previous ET + series received supplements and improvements in many places. With the well-known 16 amps input current per MPP Tracker can be connected to all current module series. With integrated smart meter incl. 3 CTS and communication dongle as well as AC + DC-Surgerine protection and AFCI arc detection, the equipment is complete. The proven backup connector provides uninterrupted selected circuits. The new Lynx D memory is also correct in this station wagon. Fast uncomplicated installation or turn-out by the BMS integrated in the module. With up to 8 batteries, FLOTT 40.0 kWh usable capacity can be feasible.

Produktvorteile:
? Emergency stream with UPS function
? 16 A input current per mpt
? 3 x CTS + WiFi-LAN dongle with Cyber Security included
? Time unlimited extension through integrated BMS
? Up to 8 storage elements in the system (40.0 kWh)

Product features System:
? AC nominal power: 8.0 kW
? Info times: 3
? AC mains voltage: 400 V
? Number of Mpp Tracker: 2
? Max. Input voltage DC: 1000 V
? AFCI arc recognition: Yes-Version 3.0
? DC - Surveillance protection: Type 2
? AC- Overlay protection: Type 2
? Storage Type: Tall Voltage
? Replacement current capable: Yes, about EPS connection
? Interfaces: RS485, CAN, WiFi, LAN
? Protection class: IP66
? Celebration: passive
? Dimensions: 460 x 496 x 221 mm (HXBXT)
? Weight: 23.0 kg

Product features Memory:
? Battery capacity (usable): 15.0 kWh
? Time window extension: unlimited
? System structure: 1 to 8 units
? Cell chemistry: LFP
? Rated voltage: 320 - 480 V
? Communication: CAN
? Celebration: passive
? Protection class: IP66
? Installation: Soil (wall mounting optional)
? Dimensions: 1180 x 700 x 170 mm (HxWxD)
? Weight: per module 52.0 kg
? Warranty: 10 years


Delivery:
? 1 x Goodwe GW8000-ET-20 G2 Hybrid-WR (Article 0160690)
? 3 x Goodwe Lynx D 5.0-11 memory module (Article 0158717)
? 1 x Goodwe Lynx D Standfu? (Article 0158718)

Important technical data

Dangerous goods transport category 2
Dangerous Goods Weight (net) (kg) 182.700
Dangerous goods description Lithium-ion batteries
Tunnelbeschränkungscode (I)
Klassifizierungscode M4
Dangerous goods class 9
Dangerous goods packaging 4g
Dangerous goods UN no. 3480
