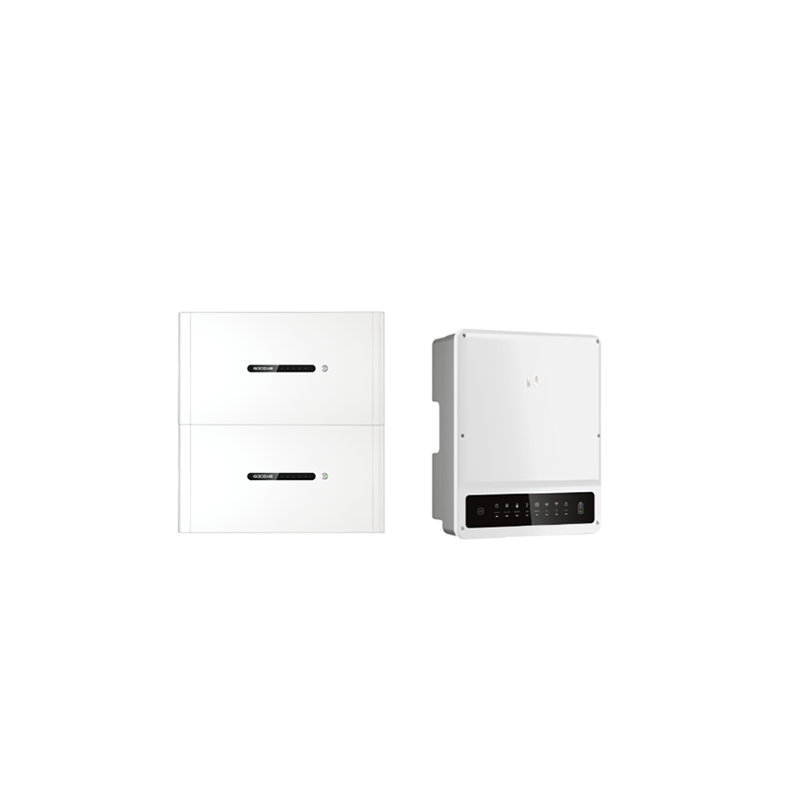

Lynx D10.0-10 + GW10KN-ET Plus+

Also in the lower performance classes of the Goodwe et Hybrid series from 5 to 10 kW make the new Lynx D memory correctly. Fast uncomplicated installation or turn-out by the BMS integrated in the module. With up to 8 batteries, FLOTT 40.0 kWh usable capacity can be feasible. Combines with the crunchy functions of the hybrid an attractive system of home use.

Produktvorteile:

? Emergency stream with UPS function <10ms

? 16 A input current per mpt

? Time unlimited extension through integrated BMS

? Up to 8 storage elements in the system (40.0 kWh)

? Certified battery safety according to VDE 2510-50

Product features System:

? AC Power: 10.0 kW

? AC connection: 400 V, 3-phase

? Number of mppt: 2

? Communication: WiFi, RS485

? Protection class: IP66

? Celebration: passive

? Dimensions: 516 x 415 x 180 mm (HxWxD)

? Weight: 24.0 kg

? Energy meter and WiFi kit included in inverters

Product features Memory:

? Battery capacity (usable): 10.0 kWh

? Time window extension: unlimited

? System structure: 1 to 8 units

? Cell chemistry: LFP

? Rated voltage: 320 - 480 V

? Communication: CAN

? Celebration: passive

? Protection class: IP66

? Installation: Soil (wall mounting optional)

? Dimensions: 800 x 700 x 170 mm (HxWxD)

? Weight: per module 52.0 kg

? Warranty: 10 years

Conclusion:

The new, fat power combi from Goodwe. Since power install spa?.

Delivery:

? 1 x GW10KN-ET PLUS + (16A) Hybrid-WR, incl. Meter (Article 0152677)

? 2 x Goodwe Lynx D 5.0-10 memory module (Article 0158717)

? 1 x Goodwe Lynx D Standfu? (Article 0158718)
