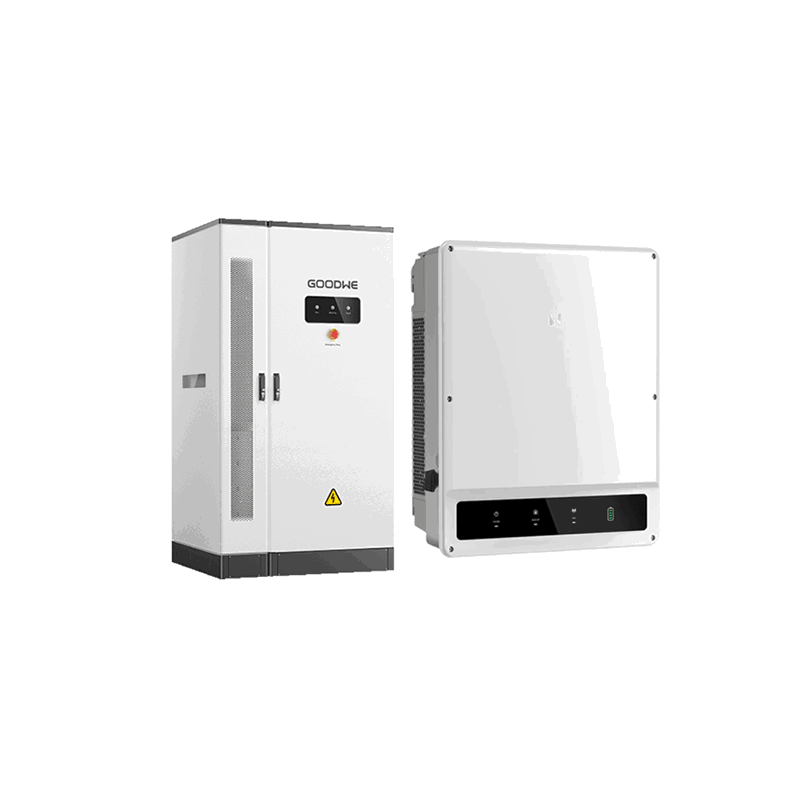

Lynx C 60K + GW29.9K-ET

With the new Lynx C commercial store, there is a real power package with the Gröe ET hybrid with 15 to 30 kW. Up to 3 units-60 kWh can be operated on an inverter. And in parallel connection of the system, greater concepts can be implemented. The master unit of the Lynx C has in the air-conditioned outdoor housing also a warm cookie Far the inverter. This shines with up to 3 Mpp trackers and 30 amps each input current.

Produktvorteile:

? Strong combination of well-known manufacturers

? Emergency stream with UPS function <10ms

? 30 A input current per mpt

? Universal outdoor installation incl. WR

? Expandable with up to 2 other extensions kits to 180 kWh

Product features System:

? AC Power: 29.9 kW

? AC connection: 400V, 3-phase

? Number mppt: 3

? Input current: 30a each mppt

? Pins Memory: 2

? Communication: WiFi, RS485

? Protection class: IP66

? Celebration: active

? Weight: 54,0 kg

Product features Memory:

? Battery capacity (usable): each unit 60.0 kWh

? Time window extension: unlimited (according to current state)

? Cascadable: up to 3 units per WR (1 x Master + 2 x Extension Kit)

? Cell chemistry: LFP

? Rated voltage: 633.6 V

? Celebration: Air conditioning

? Fire fighting: perfluor

? Protection class: IP55

? Dimensions: 2050 x 1180 x 1111 mm (HxWxD)

? Weight: 1029.5 kg

Conclusion:

This combination with great storage capacities is opened by interesting new modities. In the area of small commercial systems with less effort, a suitable system can be put together. And replacement stream in this performance class and UPS functionality-Opes new tarns.

Delivery:

? 1 x Goodwe GW29.9K-ET Hybrid-WR, incl. Meter (Article 0161590)

? 1 x Goodwe GW60KWH-D-10 Master commercial memory (Article 0157973)
