LUNA2000-7-S1 + SUN2000-5KTL-M1

The global manufacturer Huawei has been successful in the photovoltaic and storage market for years. This is also reflected in the components of this complete package. In addition to the complete equipment of the inverter for communication and protection elements, the Huawei module optimizers can also be used. With direct connection via Powerline, whether as partial or full optimization. The S1 series also brings a breath of fresh air to the Huawei storage world. More capacity and consequently higher charging performance have been combined with the proven LUNA DNA.  Quick and easy installation and retrofitting are still possible at any time thanks to intelligent system control. In parallel operation with two towers, up to 41.4 kWh of usable storage capacity is now available. In addition, up to three M1 series systems can be cascaded.

Product advantages:

? Reliable compatibility thanks to uniform manufacturer

? Up to two battery towers with a total of 41.4 kWh can be cascaded

? WLAN-FE dongle included with inverter

? Directly measuring inline meter included in the package

? Also compatible with Huawei optimizers

Product features System:

? AC power: 5.0 kW

? Number of MPPT: 2

? DC input current: 13.5 A per MPPT

? Overvoltage protection: Type 2 AC + DC

? AC connection: 3-phase

? Communication: RS485, WLAN / LAN with dongle

? Protection class: IP65

? Cooling: passive

? Dimensions: 470 x 525 x 146 mm (H x W x D)

? Weight: 17.0 kg

Product features Storage:

? Battery capacity (usable): 6.9 kWh

? Time window extension: unlimited

? Cascadable: up to 2 towers in parallel (41.4 kWh)

? Cell chemistry: LFP

? Charging capacity: 3.5 kW

? Protection class: IP65

? Dimensions: 510 x 590 x 255 mm (H x W x D)

? Weight: BMS + base: 12.0 kg, 1 x storage unit 68.0 kg each

Conclusion:

This package comes from a single source - powerful and flexible with fresh storage power and attractive additional options such as an optimizer and EV charger.

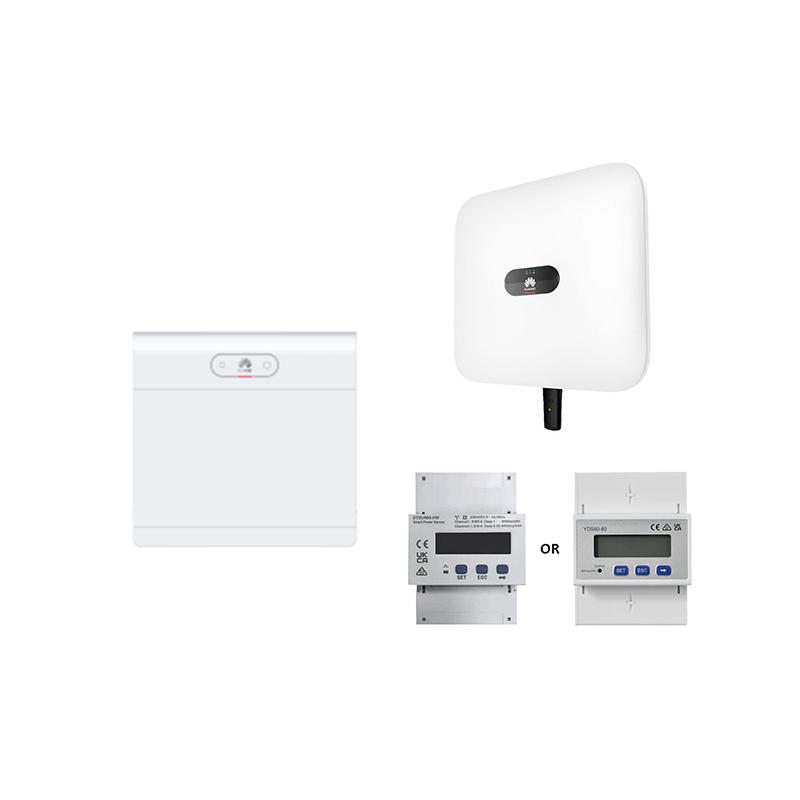

Set contains:

? 1 x Huawei SUN2000-5KTL-M1 (item 0150151)

? 1 x Huawei Smart Power Sensor (item 0153213)

? 1 x Huawei LUNA2000-10kW-C1 Power Module BMU (item 0156565)

? 1 x Huawei LUNA2000-7-E1 Storage Module (item 0156564)
