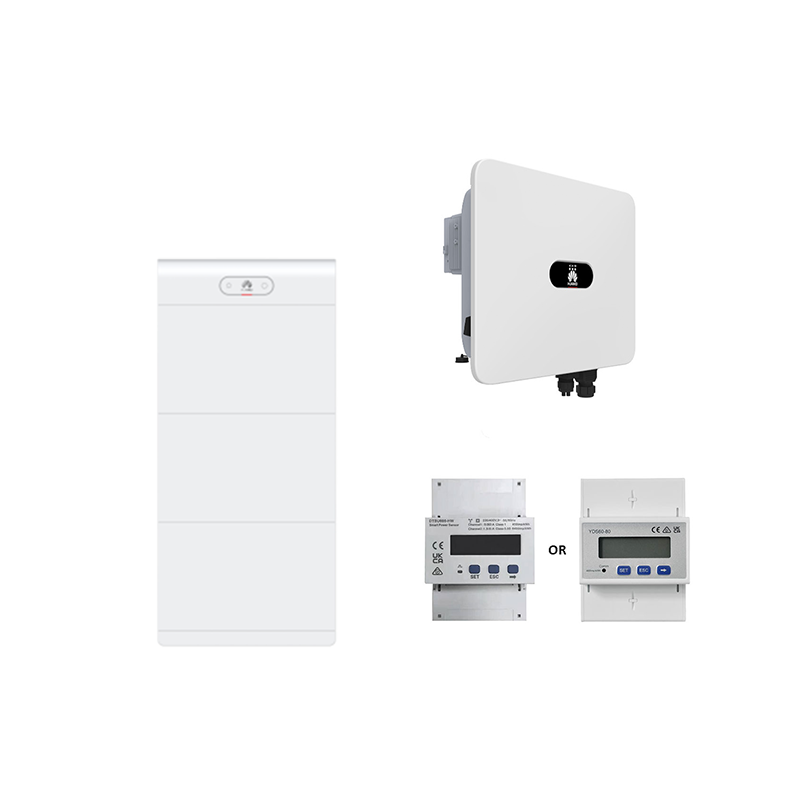

LUNA2000-21-S1 + SUN2000-17K-MB0

There are further growth in the memory sets with the Huawei Smart Energy Controllers, especially with the big hybrid inverters. The new MB0 series closes with power classes from 12 to 25 kW seamlessly to the small M1 series. Proven features such as integrated-Surveillance protection, arc detection and compatibility with the in-house Huawei optimizers are a natural. Likewise, two separate battery ports, which exhibit the appropriate storage combinations in these performance classes. In addition, the S1 series brings fresh wind into the Huawei memory world. More capacity and consequent charging capacities were combined with the proven Luna DNA. Easy and fast installation as well as turn-units are at all times thanks to intelligent system control at any time. In parallel operation with 2 heats up to 41.4 kWh usable storage capacity are preserved. In addition, up to 3 systems of the MB0 series are cascadable.

Produktvorteile:

? Safe compatibility through uniform manufacturers

? High DC input current

? 2 battery connections *

? Integrated arc detection

? With all the new Huawei optimizers compatible *

Product features System:

? AC power: 17,0 kW

? Number of mppt: 2

? DC rated current: 30 a per mpt (20 a per string)

? Number of BAT connections: 2

? Max charging power: 18.7 kW

? Compatible memory: Luna2000 S0 + S1

? AC connection: 3-phase

? ? Version protection: AC + DC Type 2

? Communication: RS485, WiFi / LAN (optional), 4G / 3G / 2G (optional), EMMA (optional, Q1 / 24)

? Protection class: IP66

? Celebration: active

? Dimensions: 460 x 546 x 228 mm (H x W x D)

? Weight: 21.0 kg

Product features Memory:

? Total battery capacity (usable): 20.7 kWh

? Time window extension: unlimited

? Cascadable: up to 2 heats parallel (41.4 kWh)

? Cell chemistry: LFP

? Charge power: 10.5 kW

? Protection class: IP65

? Dimensions: 1230 x 590 x 255 mm (H x W x T)

? Weight: 1 x BMS + pedestal: 12.0 kg, 3 x memory each 68.0 kg

* Compatible with

Optimizer: Sun2000-450W-P2, Sun2000-600W-P, MERC-110W-P, MERC-1300W-P

Memory: Luna2000 S0 + S1

Conclusion:

Gröe Sets Fär Gröe tasks-With this station wagon from MB0 inverter and up to 4 Luna-S1 storage is properly powered.

Set contains:

? 1 x Huawei Sun2000-17K-MB0 (Article 0155255)

? 1 x Huawei Smart Power Sensor (Article 0153213)

? 1 x Huawei Luna2000-10kw-C1 Power Module BMU (Article 0156565)

? 3 x Huawei Luna2000-7-E1 memory module (Article 0156564)
