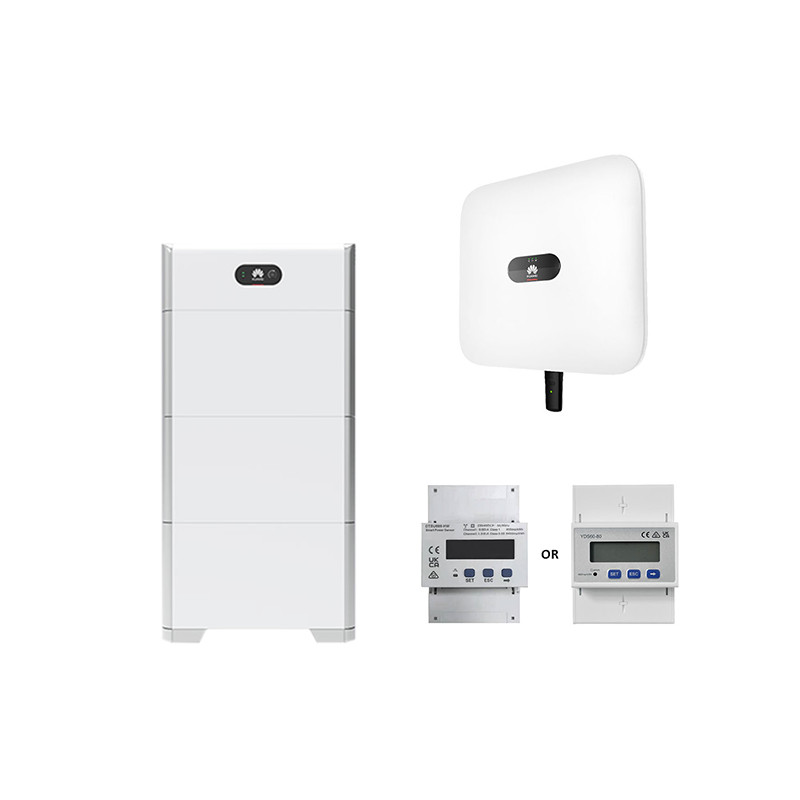

LUNA2000-15-S0 + SUN2000-8KTL-M1

For years, the global manufacturer Huawei has been successfully traveling in the photovoltaic and storage market. This is also evident in the components of this complete package. In addition to the complete equipment of the inverter in communication and protective elements, the Huawei moduloptimers can also be used. With direct connection-BER POWERLINE, whether as partial or full optimization. The Luna high-voltage storage makes no half things. Easy and fast installation as well as turn-units are at all times thanks to intelligent system control at any time. In parallel operation with 2 heats up to 30 kWh usable storage capacity are preserved. In addition, up to 3 systems of the M1 series are cascadable.

Produktvorteile:

? Safe compatibility through uniform manufacturers

? Up to 2 battery life with total 30 kWh cascadable

? Inverter Wi-Fi Dongle included

? Directly measuring inline meters in the package

? Also compatible with Huawei

Product features System:

? AC Power: 8.0 kW

? Number of mppt: 2

? DC input current: 13.5 A per mpt

? ? Version protection: Type 2 AC + DC

? AC connection: 3-phase

? Communication: RS485, WLAN / LAN with dongle

? Protection class: IP65

? Celebration: passive

? Dimensions: 470 x 525 x 146 mm (H x W x D)

? Weight: 17,0 kg

Product features Memory:

? Battery capacity (usable): 15.0 kWh

? Time window extension: unlimited

? Cascadable: up to 2 heat parallel (30.0 kWh)

? Cell chemistry: LFP

? Charge power: 5.0 kW

? Protection class: IP65

? Dimensions: 1320 x 670 x 150 mm (HxWxD)

? Weight: BMS + socket: 13.8 kg, 3 x memory each 50.0 kg

Conclusion:

This package comes like a cast-Powerful and flexible with attractive additional options such as optimizers and EV charger.

Set contains:

? 1 x Huawei Sun2000-8 KTL-M1 (Article 0150153)

? 1 x Huawei Smart Power Sensor (Article 0153213)

? 1 x Huawei Luna2000-5kw-C0 Power Module BMU (Article 0133894)

? 3 x Huawei Luna2000-5-E0 memory module (Article 0133893)
