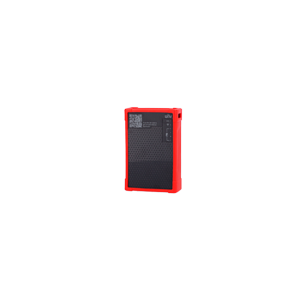

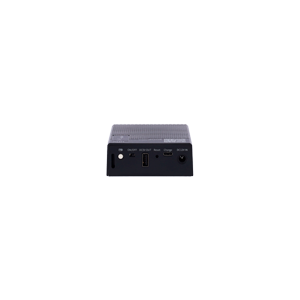

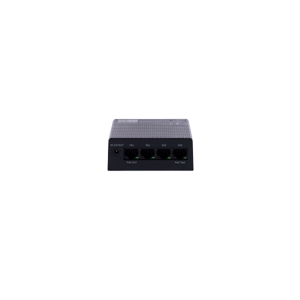

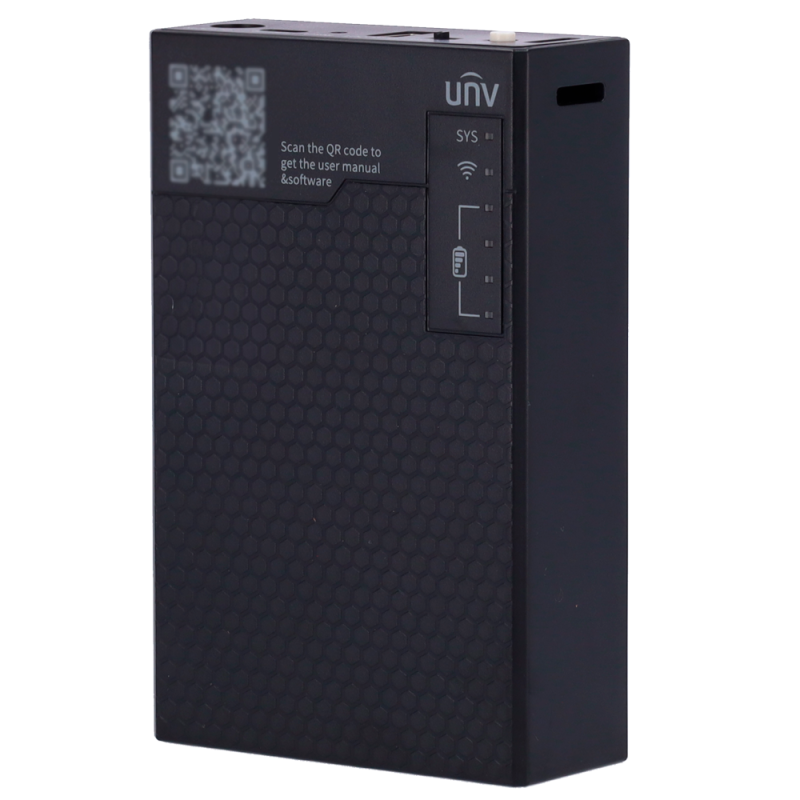

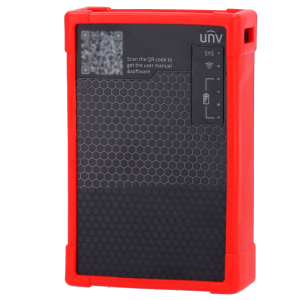

UV-LINK-BOX

The Uniview Link Box is an innovative device designed to facilitate the installation and configuration of Uniview video surveillance equipment. It is compact, portable and especially useful for professional installers, as it allows cameras to be connected and configured directly from a cell phone or tablet, without the need for additional hardware.

• Uniview IP camera configurator device
• Compatible with Uniview cameras for initial configuration

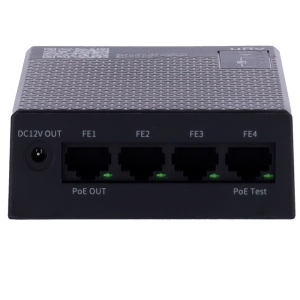

• 4 RJ45 (10M/100M Base-TX Ethernet inputs)
• Port 1 supports POE output (IEEE 802.3af))
• Port 4 supports PSE voltage detection (1V~56V; IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt) [%VAR%]
• WiFi 2.4G (IEEE802.11b/g/n)
• Lithium battery 7500mAh

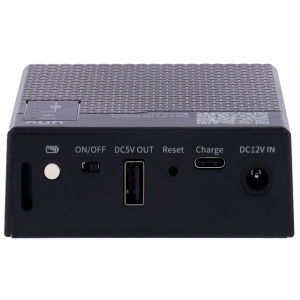

• DC power outputs 12V,1A/ 5V ,1A and USB-A
• With reset button
