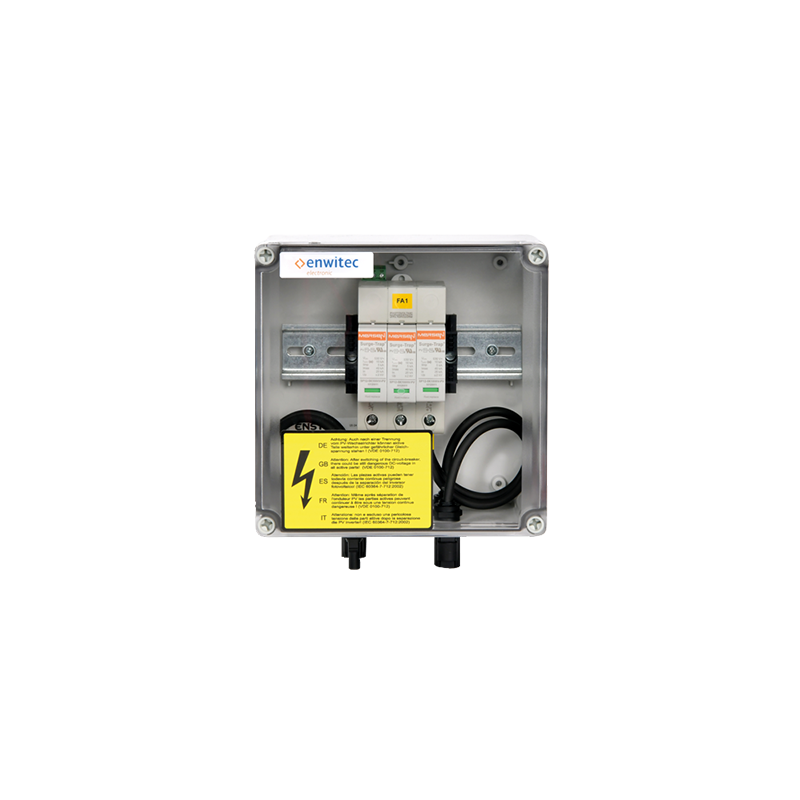

Surge protection box 1 MPPT, type 1+2

Suitable overvoltage protection is now part of the PV industry's little 1x1. With increasing module outputs and currents, the requirements for all system components are also changing. With this Enwitec box, up to 32 amps of nominal current can easily flow per string connection. The type 1+2 arrester designed for 1 MPP trackers ensures reliable protection. The DC cables are connected using the tried-and-tested SUNCLIX connectors.

Product advantages:

? Up to 32 A per string

? Interchangeable plug-in elements

Product features:

? Protection class: Type 1+2

? Max. DC open-circuit voltage: 1000 V

? Rated current: 32 A per string

? Number of MPPT: 1

? Connections per MPPT: 1 x IN/OUT

? DC connection: SUNCLIX

? Protection class: IP 65

? Dimensions: 175 x 175 x 100 mm (H x W x D)

? Weight: approx. 1.7 kg
