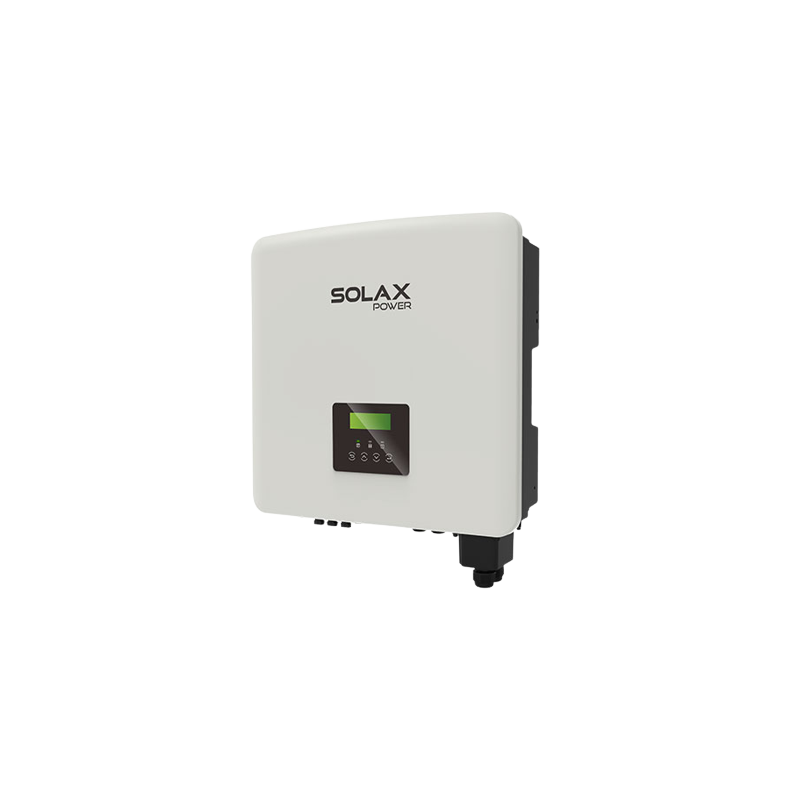

X3-HYBRID-5.0-D G4.2
  • X3-HYBRID-5.0-D G4.2

X3-HYBRID-5.0-D G4.2

0151784
SolaX Power
X3-HYBRID-5.0-D G4.2
€1,439.30
VAT included
Quantity
43 Items

Ask about the product on WhatsApp
Description
Pocket Wifi Interface V3.0 (Krannich item 0151804), Pocket Wifi Interface V3.0-P (inclusive antenna / Krannich item 0151805) or Pocket Lan Interface V3.0 (Krannich item 0151803) are recommended for registering the system in Solax Monitoring.

The device features shadow management to increase system yields.
High-efficient:
? 150% PV oversized and 110% overload output
? Maximum 150% overload output
? Higher efficiency on charging and discharging, up to 97.5%
? Built-in shadow tracking function

Economic:
? Maximum 16A DC input current, support for high power solar panel
? Store the surplus energy from PV to battery
? Low start output voltage makes inverter longer working time
? Less energy loss on battery to inverter

Intelligent:
? Switchover time <10ms
? Quick configuration with U-disk
? Lithium & Lead-acid battery compatible
? CT compatible, loads respond within 0.3s
? Intelligent loads management (e.g. Heat pump)
? On & Off-grid parallel function, up to 15kW
? 5 work modes, 2 charging periods available
? VPP ready, ancillary service in power market
? Three-phase unbalanced output 50% nominal output power on single phase at most

Safe:
? IP65 protection level
? Integrated SPD
Product Details
SolaX Power
0151784
43 Items
