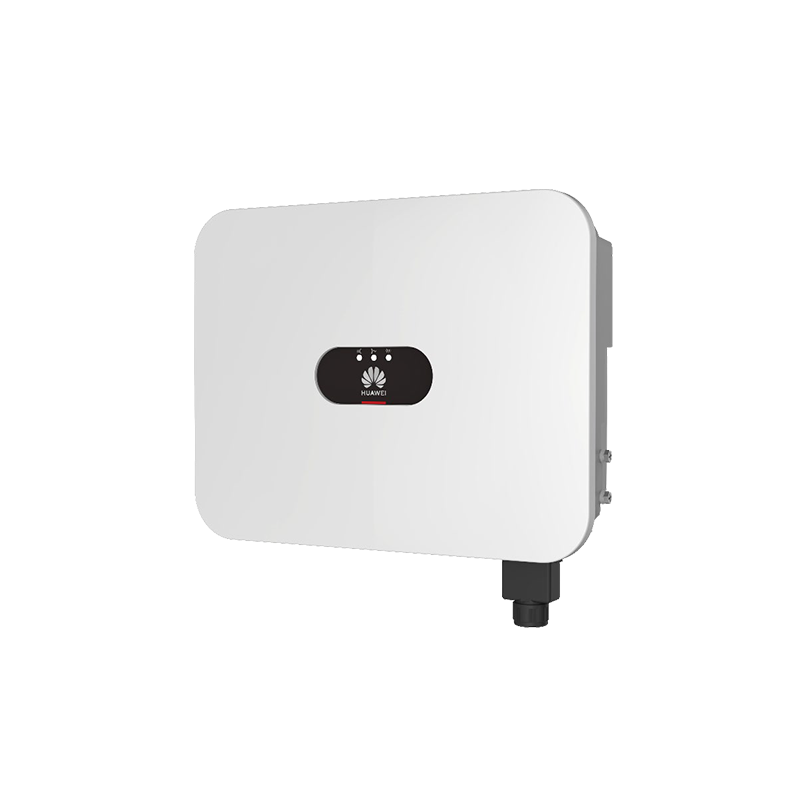

SUN2000-6*K-LB0

The global manufacturer Huawei has been successful in the photovoltaic and storage market for many years. This is also reflected in a wide range of inverters and additional components for every application. Whether XXL large-scale systems or sophisticated complete systems with storage and intelligent accessories in the home or commercial segment. Thanks to the direct connection of the in-house LUNA high-voltage storage system and the module optimisers, the single-phase devices of the new LB0 series offer maximum flexibility in the residential sector, even for smaller systems. An extensive range of communication and protection components plus a backup function round everything off perfectly.

Product benefits:

? Integrated AFCI arc detection

? Also compatible with Huawei optimisers

? Can also be used for off-grid applications (stand-alone system)

Product features:

? AC rated power: 6* kW

? Feed-in phases: 1

? AC mains voltage: 230 V

? Number of MPPT: 2

? Max. DC input voltage: 600 V

? Input current per MPPT: 16.0 A

? DC overvoltage protection: Type 2

? AC overvoltage protection: Type 2

? AFCI arc detection: yes

? Backup power capability: yes, with SmartGuard 63A S0

? Communication: RS485, WLAN, LAN with dongle (optional)

? Protection class: IP66

? Cooling: passive

? Dimensions: 365 x 425 x 130 mm (H x W x D)

? Weight: 15.0 kg

? Warranty: 10 years

Compatible optimisers:

? SUN2000-450W-P2

? SUN2000-600W-P

*Cannot be used in DE according to VDE-AR-N 4105, phase-shifting load is not limited to 4.6 kVA
