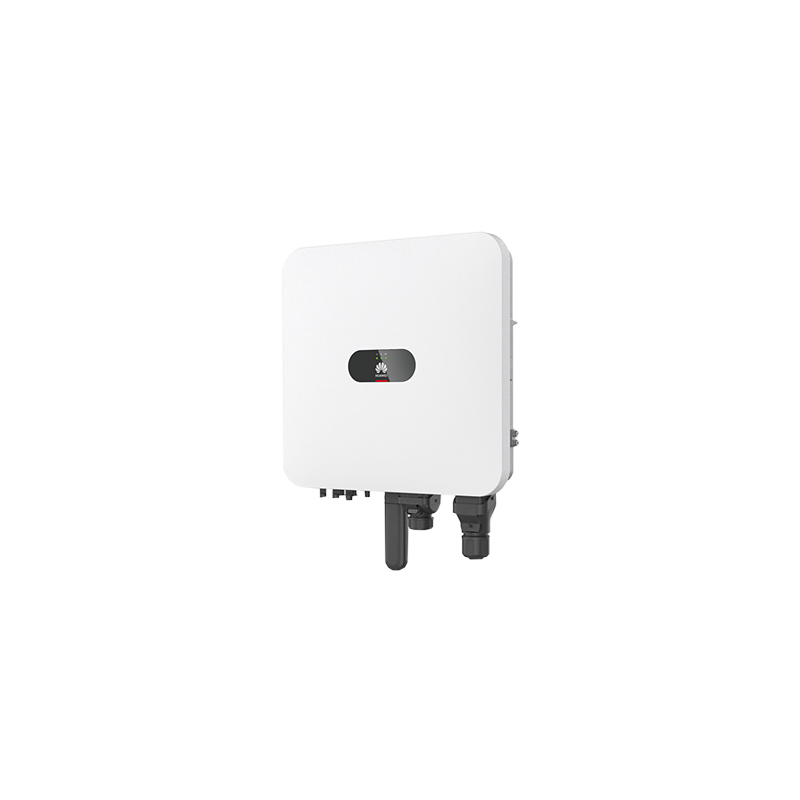

SUN2000-10K-MAP0

The global manufacturer Huawei has been operating successfully in the photovoltaic and storage market for many years. This is also reflected in its wide range of inverters for every application. Whether XXL large-scale systems or sophisticated complete systems with storage and intelligent accessories for home use. The new series of hybrid inverters from 5 to 12 kW can also implement a genuine 3-phase backup solution in addition to the proven standards. The automatically switching Smart Guard-63A-T0 Box is installed in the main supply line for this purpose. The necessary storage power is provided by the LUNA S0 or S1 series.

Product benefits:

? 16.0 A input current per MPPT

? Asymmetrical power output possible

? Full backup possible with Huawei Smart Guard-63A-T0

? Also compatible with Huawei optimisers*

Product features:

? AC power: 10.0 kW

? Number of MPPT: 2

? Overvoltage protection: Type 2 AC + DC

? AC connection: 3-phase

? Communication: RS485, WLAN / LAN with dongle

? Protection class: IP66

? Cooling: passive

? Dimensions: 460 x 490 x 130 mm (H x W x D)

? Weight: 21.0 kg

*Compatible with SUN2000-450W-P2, SUN2000-600W-P, MERC-600W-PA0 optimisers
