SOL-S6-EH3P50K-H

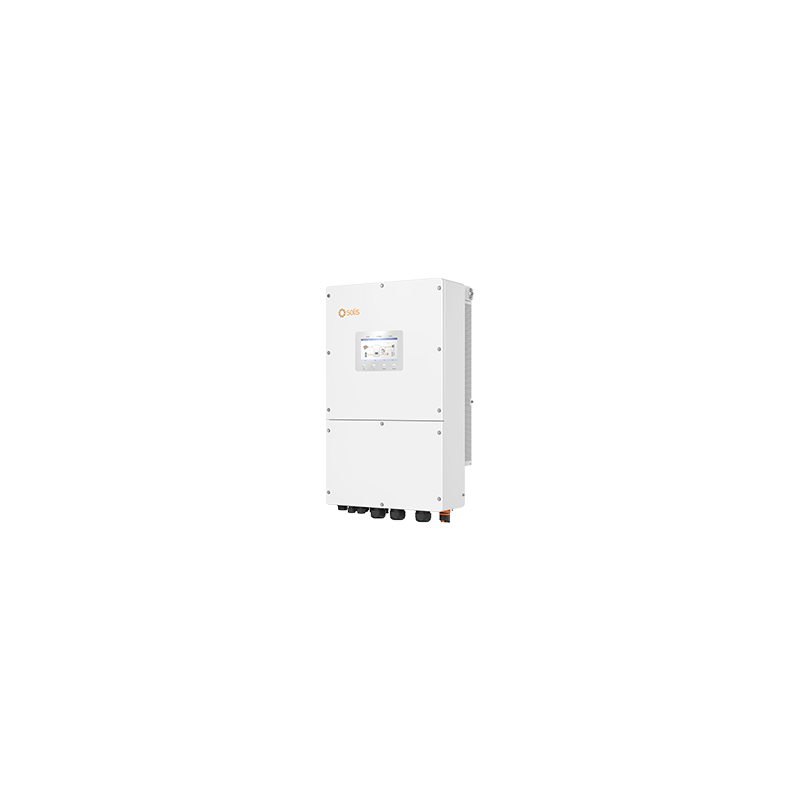

Introducing the Solis S6-EH3P(30-50)K-H Series. High voltage, three-phase energy storage for commercial applications.

Features:

• Allowable PV of up to 100kW, on the 180-1000V MPPT.
• 4-MPPTs, rated at 40A each, with 2-string inputs each allowing for 8 strings of high power/current PV modules.
• Supports Grid and Generator AC inputs.
• Parallel up to 6 x inverters for up to 300kW of back-up load.
• Battery Charge and Discharge current of up to 140A.
• UPS transfer time of less than 10ms.
• 160% surge power for 2s to accommodate inductive loads.
• Integrated AFCI (DC arc-fault circuit protection) – mitigating fire risks.
• LCD display and remote firmware upgrades with included S4 Wi-Fi/LAN Stick and Solis Cloud support/monitoring.
• Solis reliability with 5-year warranty. (extendable to 10/15/20-years)
• Current transformer ESCT-T50-300A/5A included in product packaging

SA:

• NRS-097 certified and CoCT approved.

IMPORTANT:

The inverter supports a maximum battery charge and discharge of 140A. As each of the two battery ports support a maximum of 25mm² cable/70A. If you require the 140A from a single battery/battery stack, you are required to connect your battery cables to a common bus bar for positive and negative and take a 25mm² cable to each battery port on the inverter. Setting 1 BAT 2 DC on your inverter battery settings and connecting to BMS port 1.
