SOL-S6-EH3P20K-ND-H
  • SOL-S6-EH3P20K-ND-H

SOL-S6-EH3P20K-ND-H

SOL-S6-EH3P20K-ND-H
Solis

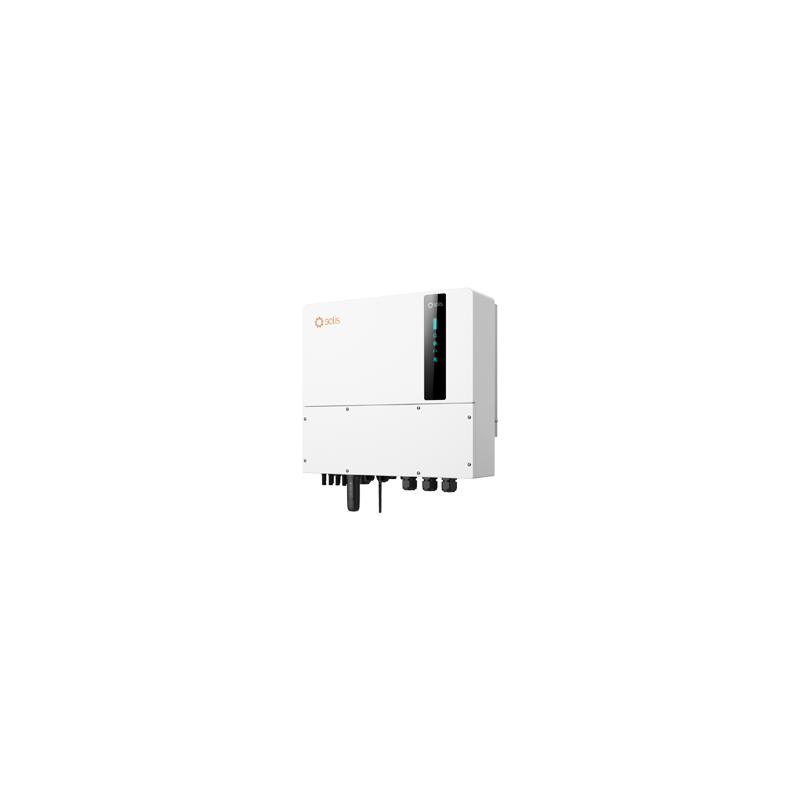

S6 20 kW Three Phase Hybrid High Voltage Inverter - No Display
€268,761.57
VAT included
Quantity
Last items in stock
1 Item

Ask about the product on WhatsApp
Description

Features:

* Integrated 4 MPPTs for multiple array orientations

* Up to 50A max charge/discharge current

* String current up to 20A, perfectly match large current modules

* 10 second 200% surge power backup overload capability

* Supports Max 6 pcs in parallel

* Supports Unbalanced and Half-Wave Loads on both the Grid and Backup Port

* Supports peak shaving control in both "self-use" and "generator" mode

* 6 customisable charge/discharge time settings

* Automatic UPS switching

* Intelligent AC coupling scheme, easily upgrade existing grid-connected systems

Note: Including 3 current sensors for direct connection to the inverter

Product Details
Solis
SOL-S6-EH3P20K-ND-H
1 Item
Weight:
32.6 kg
Rated Power:
20,000 W
Min PPT Voltage:
200 V
Max PPT Voltage:
850 V
DC Startup Voltage:
160 V
DC Shutdown Voltage:
1,000 V
Max Input Voltage:
1,000 V
Max DC Power:
32,000 W
Max AC Power (5 Minutes):
20,000 W
Surge AC Power (1 Second):
20,000 W
Max DC Current:
80 A
Max DC Inputs:
4
Has DC Fuses:
0
Connector:
MC4
Included Connectors:
4
Euro Efficiency:
97.7 %
Transformer:
none
IP Rating:
IP66
MPPT Quantity :
4
Has Integrated DC Switch:
No
Warranty:
5 years
